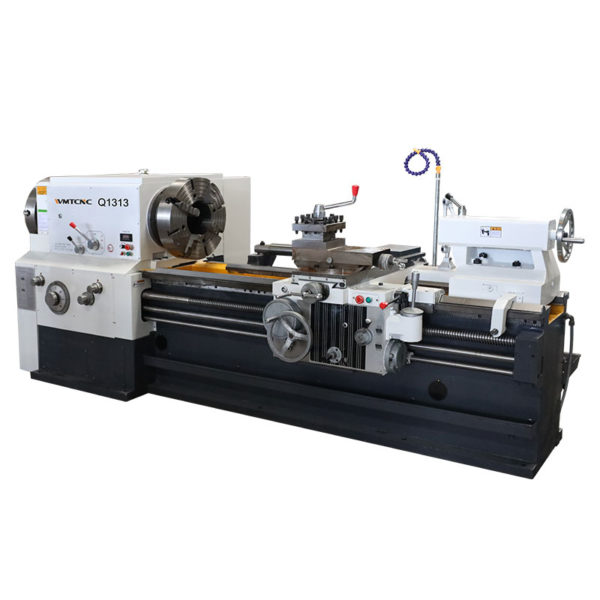

WMT CNC Q1313 管螺纹铣床 (12-642rpm)

Max dia.swing over bed: 630mm

Max dia.swing over cross slide: 350mm

Max.length of work-piece: 1500mm

Width of bed: 550mm

Spindle bore: 135mm

Power of spindle motor: 11kW

Spindle speed: 12-642r/min FWD.18 steps

Z axis feed grade/range: 26/0.07-1.33mm/r

X axis feed grade/range: 22/0.02-0.45mm/r

Carriage rapid traverse speed: 4000mm/min

Cross slide rapid traverse speed: 2300mm/min

Metric thread grade/range: 52/1-224mm

Inch thread grade/range: 1940/2/28T.P.I

Traverse of cross slide: 320mm

Max. Traverse of turret: 200mm

Tailstock quill travel: 250mm

Tailstock quill Dia./taper: Φ100/(MT5#)mm

Chuck: 3-jaw manual

Overall dimensions(L*W*H): 3657×1360×1480

Net weight: 4.2T
