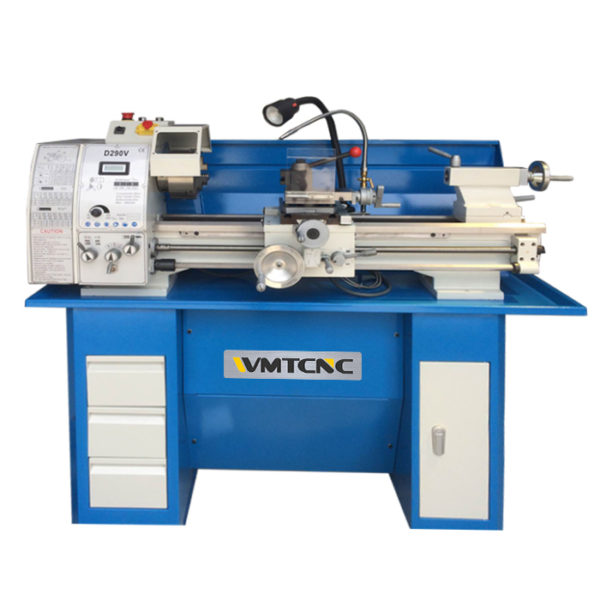

WMT CNC D290V 可变铣床 (80-2000rpm)

Max. swing over bed: φ290mm

Distance between centers: 700mm

Swing over cross slide: 180mm

Width of bed: 182mm

Spindle bore: 38mm

Taper of spindle bore: MT5

Range of spindle speeds(variable speed): 80-2000rpm

(6 steps): 150 300 600 500 1000 2000rpm

Metric threads can be cut: 0.2-3.5mm

Inch threads can be cut: 8-56TPI

Top slide travel: 70mm

Cross slide travel: 160mm

Tailstock quill travel: 70mm

Taper of tailstock quill: MT3

Motor power: 1500W

NW/GW: 250/270kg

Packing size(LXWXH): 1450X700X680mm
