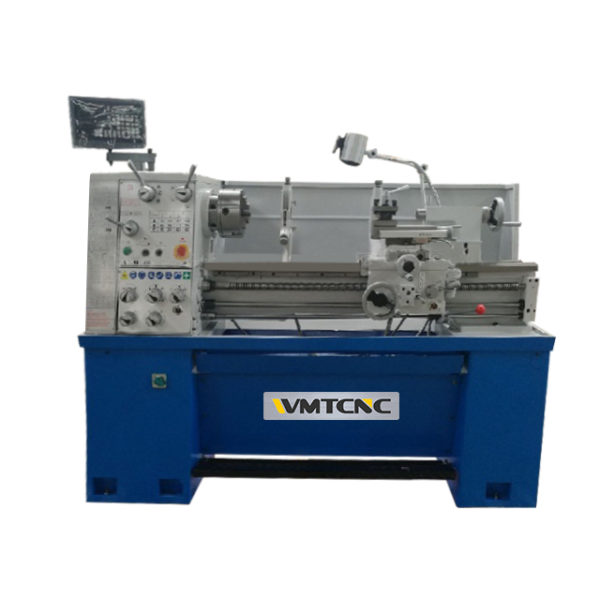

WMT CNC CQ6240 台式铣床 (65-1800rpm)

Max. swing over bed: 400mm

Max. swing over cross slide: 250mm

Max. swing over gap: 520mm

Distance between centers: 1015mm

Width of bed: 218mm

Spindle bore: 52mm

Spindle taper: MT6

Spindle nose: D5

Range of spindle speed: 65-1800rpm

Range of longtudinal feeds: 0.0527-1.2912mm/rev

Range of cross feeds: 0.011-0.276mm/rev

Range of metric threads: 0.4-7mm

Range of inch threads: 4-60TPI

Taper of tailstock: MT4

Motor power: 2.2KW (3HP)

Packing size: 1940x890x1545mm

NW/GW: 760/840kg
