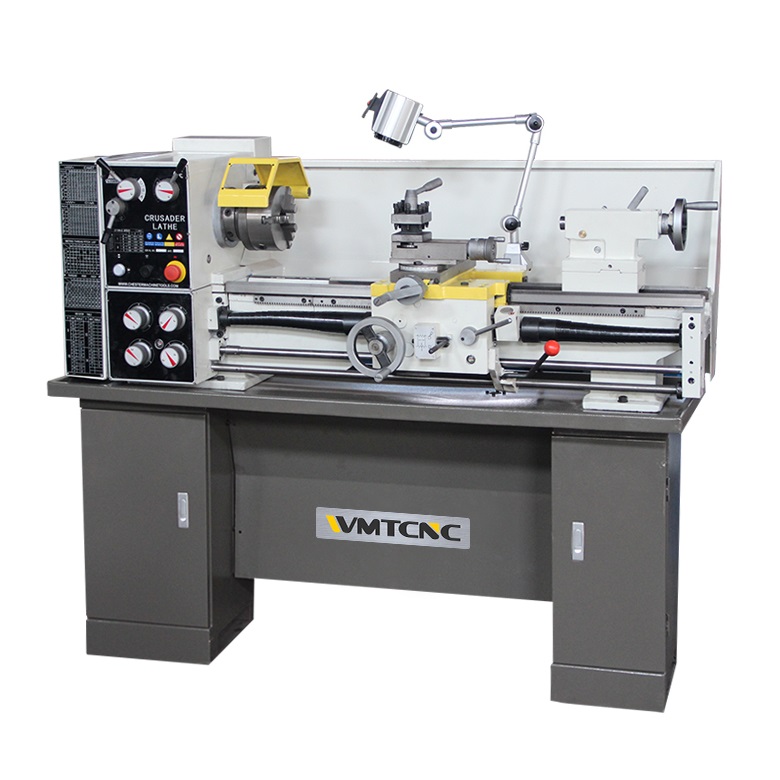

WMT CNC CQ6230 台式铣床 (65-1700rpm/ 65-1810rpm)

Swing over bed: 300mm

Swing over cross slide:180mm

Swing over gap: 430mm

Distance between centers: 750/910/1000mm

Spindle bore: 38mm

Spindle taper: MT5

Spindle speed range: 65-1700rpm or 65-1810rpm

Longitudinal feed range: 0.079-10.291 mm-rev  0.003″-0.0508″ /rev

Cross feed range: 0.017-0.276 mm/rev 0.0007″-0.0108″ /rev

Metric thread range: 0.4-7mm

Inch thread range: 4-60 TPI

Travel of tailstock: 100mm

Taper of tailstock: MT3

Motor power: 1.1kw/1.5kw

G.W: 550/590/670kgs

N.W: 500/540/640kgs

Packing size: 1480/1680/1970x750x1400mm
