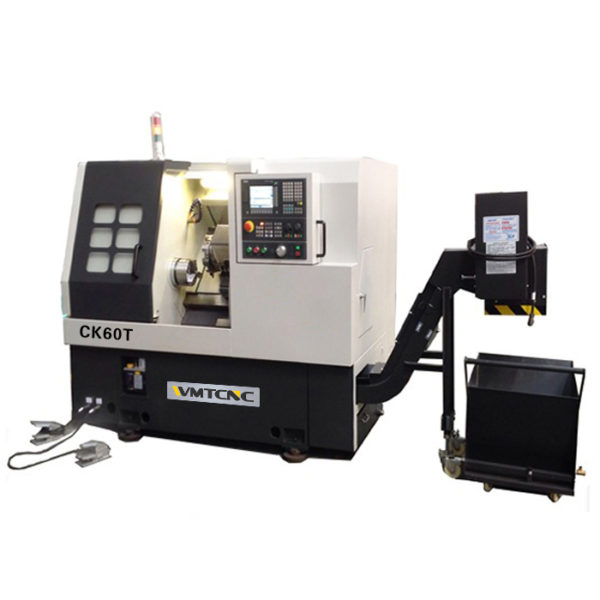

WMT CNC CK60T 斜床数控车床 (570mm)

Max.swing over bed: Φ570mm

Max. processing diameter: Φ500mm

Max.processing diameter on the tool holder: Φ230mm

Max.processing length: 520/750mm

Spindle head type: A2-6

Hydraulic chuck: 8/10 inches

Spindle motor power: 11-15KW

Max.spindle speed: 4200rpm

Spindle bore diameter: Φ66mm

Bar diameter: Φ52mm

Size of X/Z axis screw: 3210mm/4010mm

Max.travel of X axis: 270mm

X axis motor torque: 11N.M

Size of X/Z Axis linear guideway: 45/45

Max.travel of Z axis: 610/840mm

Z axis motor torque: 11 N.M

Center height of 12-station power turret: 100mm

center height of 12-station servo hydraulic turret: 100mm

Max. travel of Tailstock: 480mm

Tailstock sleeve taper: MT-4

Angle: 30°

Dimensions (L×W×H): 1800×1320×1438mm / 2100×1386×1660mm

Weight: 3400/3700kg
