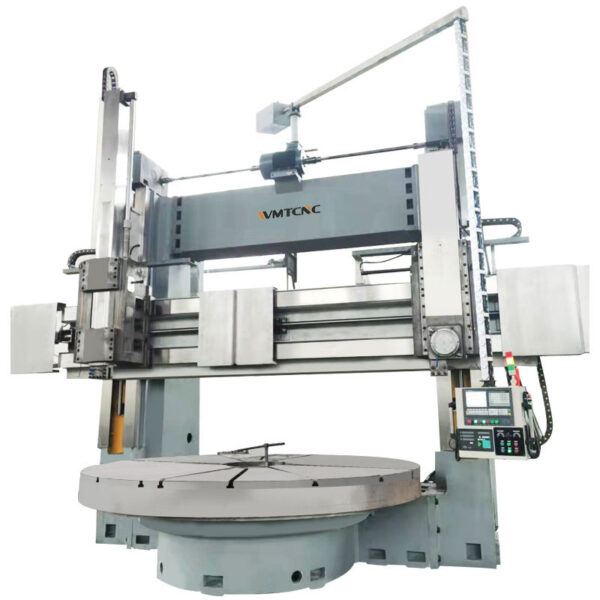

WMT CNC CK5225 数控立式铣床

Maximum cutting diameter of vertical tool post: 2500mm

Diameter of worktable: 2250mm

Maximum processing height: 2000mm

Maximum weight of workpiece: 20t

Rotating speed range of worktable: 2-62r/min

Rotating speed of worktable (Step): II step variable speed

Maximum torque of worktable: 63KN/m

Maximum cutting force of vertical tool post (left/right): 28/35KN

Ram of horizontal stroke: 1400mm

Ram of vertical stroke: 1000mm

Fast moving speed of tool post: ≥2000mm/min

Beam lifting speed: ≥350mm/min

Main motor power: 55kw

CNC axis:X.Z two-axis linkage

Machine weight (approximately): 37t

Machine Size: 5180*5200*5270mm
