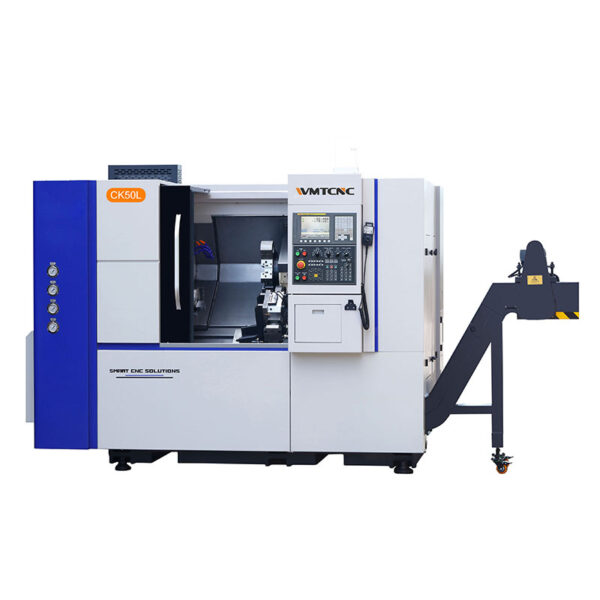

WMT CNC CK50L/1100 斜床数控铣床 (500mm)

Chuck size: 8/12inch

Max. swing over bed: 500mm

Max. length of workpiece: 1100mm

Standard machining dia.: 200mm

Max. swing over cross slide: 360mm

Spindle bore: 62mm

Spindle hole after hydr.: 52mm

Spindle nose: A2-6

Spindle taper: φ70(1:20)

Spindle speed: 4000/2000/5500rpm

Main motor power: 7.5/11kw

X axis travel: 250mm

Z axis travel: 1100mm

X/Z rapid traverse: 20000mm/min

Tool post: 8*12

Type of tailstock: Hydraulic

Taper of tailstock quill: MT4

Travel of tailstock quill: 80mm

Slant bed degree: 35degree

Overall dimension(LxWxH): 3080×2300×2350mm

Weight: 4400kg
