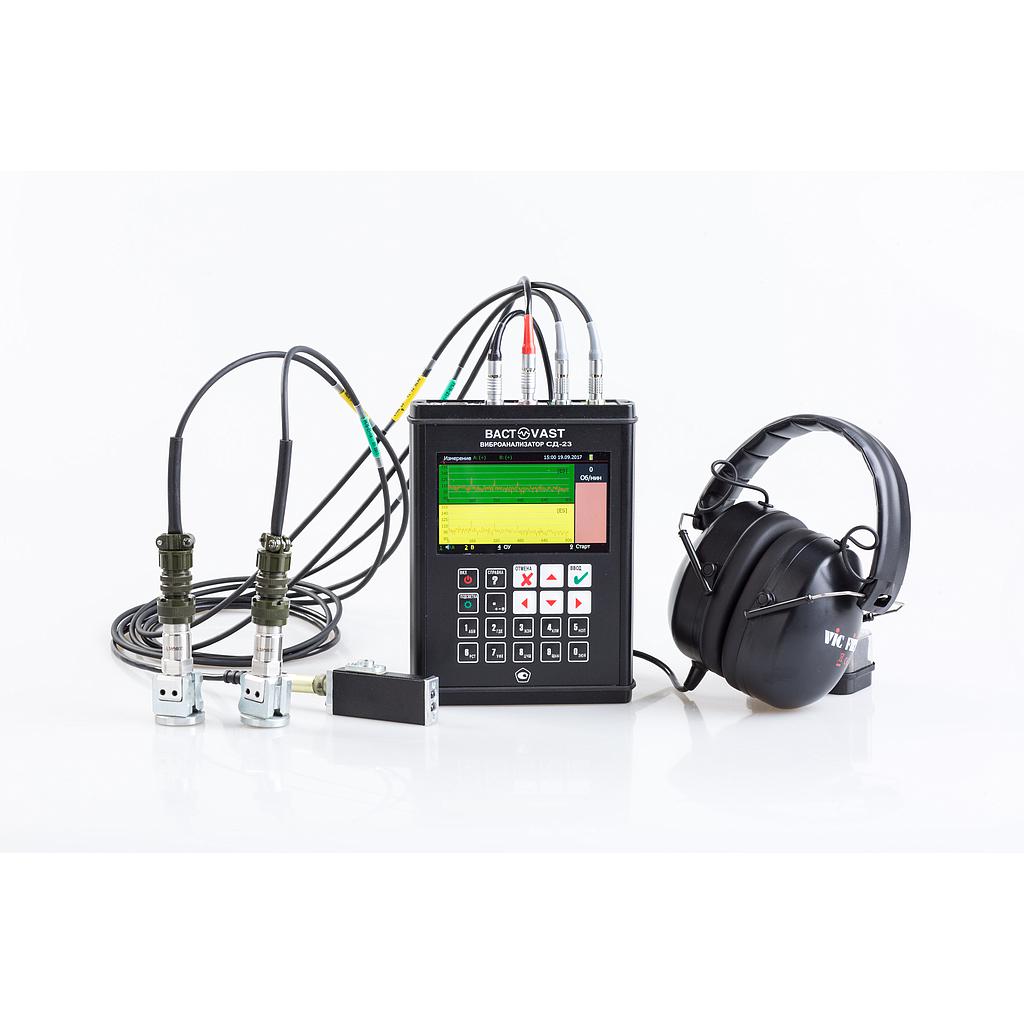

VAST DC-23 in basic kit Vibration and dynamic balance analyzer

Number of measurement channels: 2 synchronous
Voltage change range on linear input: ± 5В
Non-linearity of AFR (linear Input; frequency range from 0,5 Hz to 25600 Hz): ≤±3%
Limits of allowed relative error for measurement of instant voltage values: ±5%
Frequency range in spectra: from 0,5 to 51200 Hz
Dynamic range: ≥ 100dB
Resolution in spectral analysis: 400, 800, 1600, 3200, 6400, 12800,25600,51200 lines
Phase shift between the channels:
- in frequencyrange 2…300 Hz, : ≤±1 degree
- in frequency range 301…1000 Hz,: ≤±5 degrees
Channels interaction: ≤–110 dB
Vibration parameters measurement range:
- acceleration (on the base frequency of 160 Hz): 0,05 …1000 m/s2
- velocity (on the base frequency of 80 Hz): 0,1…100 mm/s
- displacement (on the base frequency of 40 Hz): 1…1000 mkm
General
Duration of continuous work in measurement mode: ≥8 hours
Time needed for full battery charge: ≤ 4.5hours
Expected lifetime: 10 000 hours
Mass: 1 kg
Dimensions: 142x194x39mm
Operation conditions:
- Temperature: -20... +50 °С
- Relative humidity: 30…90 %
Vibration analyzer DC-23 (Main block) 1 pcs.
Accelerometer 603V01 2 pcs.
Magnet holder DM2 2 pcs.
Set
Cable RK76-21-1а (green) 1 pcs.
Cable RK76-21-1а (yellow) 1 pcs.
Cable RK76-21-5а (green) 1 pcs.
Cable RK76-21-5а (yellow) 1 pcs.
Optic sensor FD-2 1 pcs.
Cable КММ-21-1 1 pcs.
Cable КММ-21-10 1 pcs.
Holder CV-8CB 1 pcs.
Battery charger СА-22 1 pcs.
Case for DC-23 1 pcs.
Interface cable USB-СМ-21 1 pcs.
USB cable with amplifier 1 pcs.
DC-23 logbook 1 pcs.
Manual for DC-23 1 pcs.
USB flash drive 1 pcs.
Transportation bag 1 pcs.


DC-23 in basic kit:Two accelerometers, tachometer, route measurements, balancing software, Dream-0
