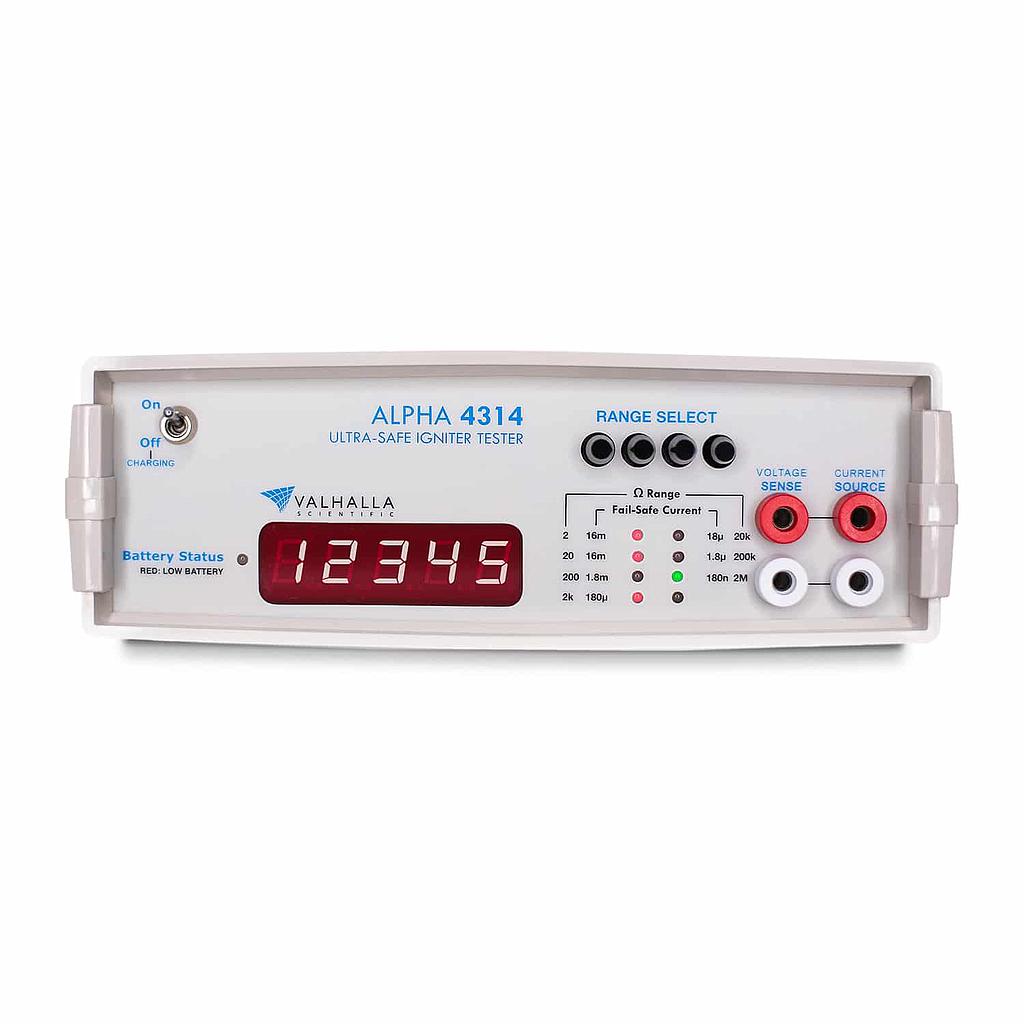

Valhalla Scientific ALPHA 4314 Digital Igniter Tester

General Specifications:

Display Type: 4 ½ digits LEDs (19999)

Overload Indication: O.L.

Conversion Rate: 3 readings per second

Terminal Configuration: 4-Wire Kelvin

Current Source Compl. Voltage: Clamped at 1.6V

Power: 4“D” Cell 1.2V recharg. NiMH Batteries 10000mAh

Battery Charger: 6VDC at 300mA nominal

Temperature

Temperature Coefficient: ±0.002% per °C(from 0°C~15°C and 35°C~50°C)

Operating Temp. Range: 0°C~50°C

Storage Temp. Range: -10°C~70°C

Physical Specifications

Width: 9.5”/24cm

Depth: 11”/27cm

Height: 3”/8cm

Weight: 3lbs/1.3kg net; 6lbs/3kg shipping


Accessories:

-Battery Charger 115Vac to 6VDC @ 300mA

-4 Heavy Duty rechargeable NiMH Batteries 1.2V 10000mAH.

-Carrying Case for the meter with room for the battery charger and Lead Sets

-Pelican 1500 Hard Carrying Case with Custom Foam for the meter, battery charger, up to 3 sets of leads and extra batteries.

-Standard 19" equipment rack adaptor

Options:

-This option provides parallel BCD data on p rear-panel 50-pin connector. All outputs are TTL comparable levels with a drive capability of 1 LS load.

-Continuous Isolated AC Power

-6-pin Mil-Spec circular connector (MS3112E10-6S) replaces the four-terminal banana jacks and the battery charger jack. Makes it physically impossible to simultaneously connect the AC/DC Charger while measuring with the test leads.

Detail








Datasheet


Manual
