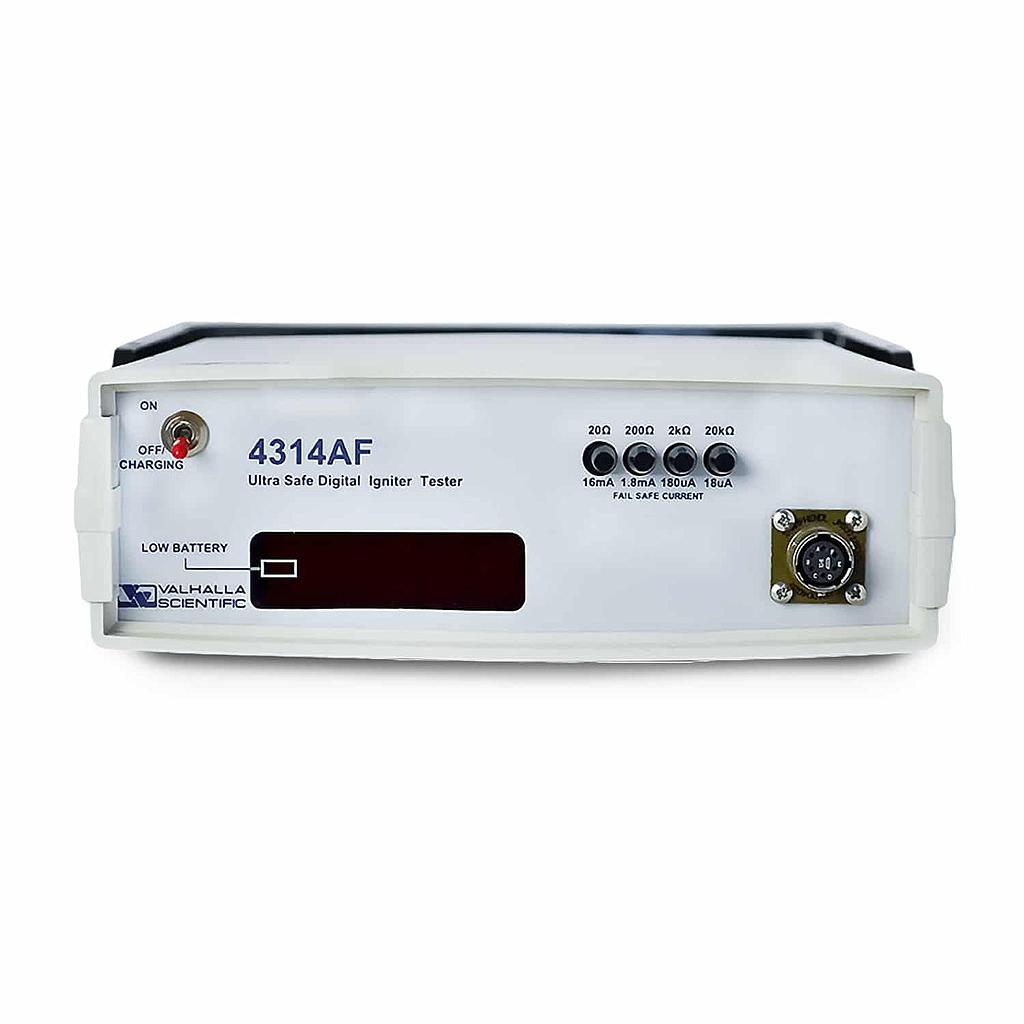

Valhalla Scientific 4314 AF Digital Igniter Tester

General Specifications

Display Type: 4 ½ digits LEDs (19999)

Overload Indication: O.L.

Conversion Rate: 3 readings per second

Terminal Configuration: 4-Wire Kelvin

Current Source Compl. Voltage: Clamped at 1.6V

Power: 4 “D” Cell 1.2V recharg. NiMH Batteries 10000mAh

Battery Charger: 6VDC at 300mA nominal

Temperature

Temperature Coefficient: ±0.002% per °C (from 0°C~15°C and 35°C~50°C)

Operating Temp. Range: 0°C~50°C

Storage Temp. Range: -10°~70°C

Physical Specifications

Width: 9.5”/24cm

Depth: 11”/27cm

Height: 3”/8cm

Weight: 3 lbs/1.3kg net; 6lbs/3kg shipping
