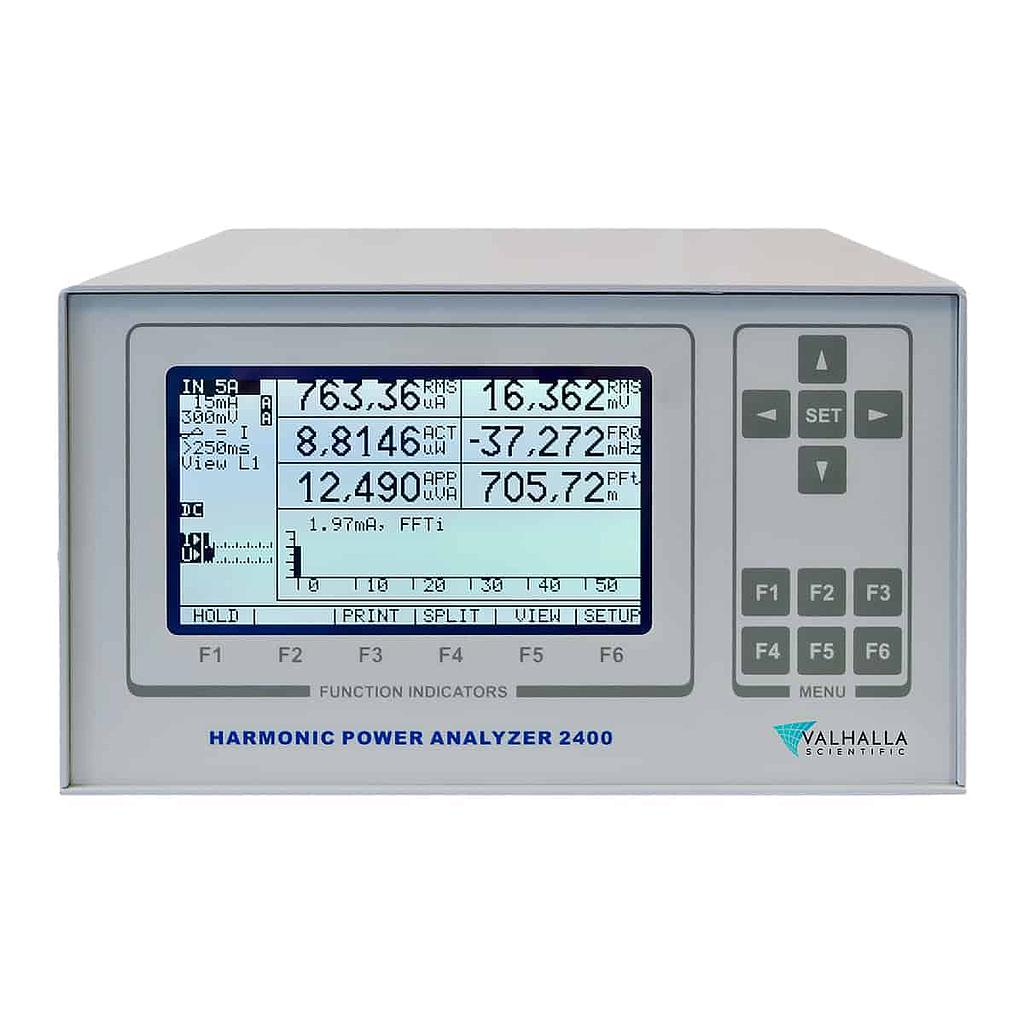

Valhalla Scientific 2400 功率分析仪 (0.3~1000V, 1.5mA~100A )
制造商: Valhalla Scientific Model: 2400 保障: 12 Month - 报价要求
- 报价要求
- 联系
Voltage:
Range: 0.3V~1000V
Frequency range: DC, 0.1Hz~1 MHz
Crest Factor: 3:1 at 50% full scale(fs)
Input Impedance: 1 MOhm
Common Mode: 50 Hz/100 kHz, 160 dB/100 dB
Current:
Range: 1.5mA~100A
Frequency range: DC, 0.1Hz~300kHz/1MHz
Crest Factor: 3:1 at 50% full scale(fs)
Common Mode: 50 Hz/100 kHz, 160 dB/100 dB
Power: 104 ranges corresponding to the products VxA
Frequency: 0.1 Hz-400 kHz, V triggered; Accuracy ±0.1 %.
Display: Blue liquid crystal graphic display with FL backlight 64×120 mm; 128x240 pixels
Dimension HxWxD:150x235x320 mm
Weight: 4kg
Options:
IEEE-488-2, RS232, Centronics printer output
4 programmable analog outputs; single-, sum-, or average values 4 analog inputs 0-±5V, input impedance 200 kΩ
4 analog inputs, 0-±10 V, input impedance 200 kΩ Rack Mounting Kit
Windows Operating Software 95, 98, 2000, NT, XP; transformer-motor testing
Datasheet
