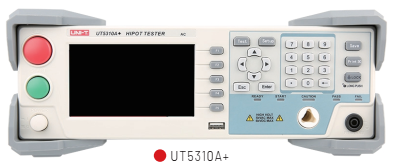

UNI-T UT5310A+ AC 可编程绝缘耐压测试仪 (10mA, 5KV AC)

- Withstand voltage

Output voltage （AC ）: Voltage range: 0.050kV—5.000kV

                     Voltage waveform: Sine wave

                     Distortion degree: < 3％

                     Operating Frequency: 50/60Hz

                     Frequency accuracy:±1%

                     Output power: 50VA（5.000kV 10mA）

                     Voltage regulation: ±(1.0%+50V) (Rated power）

Voltage resolution: 1V

Voltage output accuracy: ±(1.0%Set value+5V) (No load)

Voltage test accuracy: ±(1.0%Reading+5V)

- ARC Detector

Measuring range: AC: Off, level 1 ~ 9

                 DC: Off, level 1 ~ 9

- Comparator

Discrimination mode: Window comparison mode

                     Current lower limit ON: pass when I lower limit < Ix < I upper limit;

                     When Ix ≤ I lower limit or Ix ≥ I upper limit, fail. (I lower limit < I upper limit)

                     Current lower limit OFF: when Ix < I upper limit, pass; When Ix ≥ I upper limit, fail.

                     The discrimination method of insulation resistance is the same as above

Current upper limit setting: AC: 0.001mA – 10mA

                             DC: 0.1uA – 5mA

Current lower limit setting (LOWER OFF): AC: 0.001mA – 10mA

                                         DC: 0.1uA –5mA

Resistance upper limit setting: OFF， 0.1MΩ - 10GΩ

Resistance lower limit setting: 0.1MΩ– 10GΩ

Discriminant output: PASS/FAIL LCD and LED display respectively and sound alarm

Interface & protocol: USB host、 HANDLER、 RS232C， Optional RS485， SCPI protocol

Upper computer software: Yes

Power: AC 110V/220V±10% 50~60Hz

Display mode: 4.3 inch LCD screen

Product size（W×H×D）: 295mm×117.6mm×465mm

Product net weight: 8.3kg
