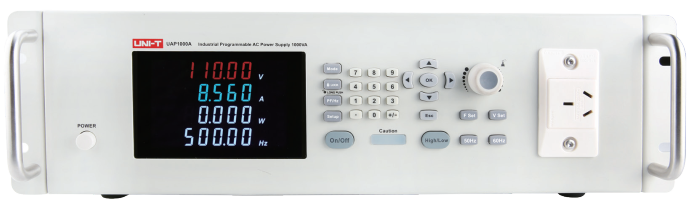

UNI-T UAP1000A 可编程交流电源 (1000VA,300VAC,1φ2W)

Capacity: 1KVA

Generation mode:SPWM(Sinusoidal pulse width modulation)

Input:

- Phase number: 1φ2W

- Voltage: 220V±10%

- Frequency: 47Hz - 63Hz

Output:

- Phase number: 1φ2W

- Voltage: 0-150VAC / 0-300VAC AUTO

- Frequency: 45Hz-250Hz(0.01Step)

Maximum current:

- L=120V: 8.4A

- H=240V: 4.2A

Load Stability: 0.1%

Waveform distortion T.H.D: 0.3%% (low grade 120V, high grade 240V, with pure resistive load)

Frequency stability: 0.01%

Resolution:

- Voltage: 0.01V

- Frequency: 0.01Hz

- Current: 0.001A

Measurement accuracy:

- Voltage: ±0.5%FS+5dgt

- Current: ±0.5%FS+5dgt

- Frequency: ±0.01%FS+5dgt

- Power: ±0.5%FS+5dgt

Setting accuracy: Voltage:±1%FS

                   Frequency: ±0.1%FS

Display: Voltage Vrms、 Current Arms、 Frequency Fre、 Power Wattage、 Power factor PF

Storage Memory: M1~M9(V_F_A）

Current limiting setting: 0~Max Current（maximum current: maximum capacity / 240V, i.e. P / 240)）

Output protection: Over Current, Over Temp, Over Load,Short Circuit

Communication interface: RS232C

Power: AC 220V±10% ,47Hz~63Hz

Display: VA code breaking screen

Product net weight: 20.7kg

Product size: 430mm×132mm×483mm
