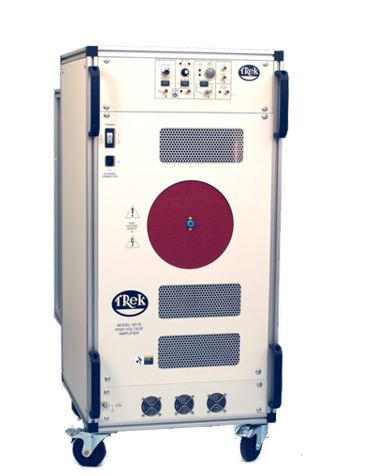

Trek 40/15 高压功率放大器

Output Voltage Range: 0 to ±40 kV DC or peak AC
Output Current Range: 0 to ±15 mA DC or peak AC
Input Voltage Range: 0 to ±10 V DC or peak AC
Input Impedance: 25 kΩ, nominal (inverting/differential option
50 kΩ nominal)
DC Voltage Gain: 4000 V/V
DC Voltage Gain Accuracy
Better than 0.1% of full scale
Offset Voltage: Less than ±4 V
Output Noise: Less than 5 V rms*
Slew Rate (10% to 90%, typical): Greater than 350 V/µs
Small Signal Bandwidth (-3dB): DC to greater than 20 kHz
Large Signal Bandwidth (2% distortion) :DC to greater than 1.4 kHz
Dimensions: 1239 mm H x 578 mm W 893 mm D
Weight: 100 kg
