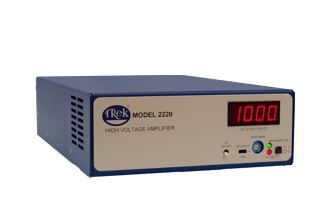

Trek 2220 高压功率放大器

Output Voltage Range: 0 to ±2 kV DC or peak AC
Output Current Range: 0 to ±10 mA DC or 20 mA peak AC for 5 ms
Input Voltage Range: 0 to ± 10 V DC or peak AC
Input Impedance: 10 kΩ, nominal
DC Voltage Gain: 200 V/V
DC Voltage Gain Accuracy: Better than 0.1% of full scale
Offset Voltage: Less than ±1 V
Output Noise: Less than 50 mV rms*
Slew Rate (10% to 90%): Greater than 100 V/µs
Settling Time: Less than 50 µs for a 0 to 2 kV step
Large Signal Bandwidth : DC to greater 7.5 kHz (-3dB)

Small Signal Bandwidth (-3dB): DC to greater than 50 kHz
Dimensions:85 mm H x 205 mm W 325 mm D
Weight:2 Kg
