Transpak TP-702NS Fully Automatic Strapping Machine (for Print Media, 5-9mm, 1-32kg)

Capacity

Up to 42 bundles/minute (single strap)

Up to 24 bundles/minute (double straps)

Bundle Size

Width                 Height

max   500 mm      max   390 mm

min    120 mm      min     10 mm

Bundle Weight: max 25 kg

Strap Width: 5 mm, 6 mm, or 9 mm

Tension Range: 1 - 32 kg

Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH

Pneumatic Source: 6 bar

Air Consumption: 2.65 liter/cycle

Weight: 430 Kg


Options

Energy saving transit with auto sleep mode

Light tower with low strap sensor (triple lamp)

Additional soft press for convex bundle

Lower adjustable table height with movable casters (730 mm - 830 mm)

Automatic side squaring

Reverse bundle flow

Low volume bundle bypass

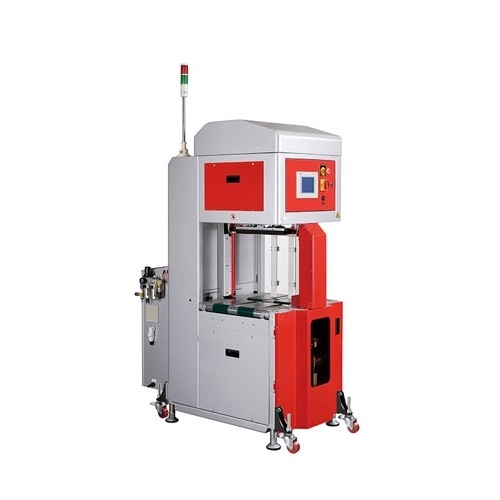

Movable casters (picture shown with this option)

Lever switch for bundle with wrapping

Extension belt-driven table of 200 mm on upstream or downstream sides


Detail

Datasheet


TP-702NS is a fully automatic strapping machine. With its high strapping speed, it can be integrated into most production lines and be utilized for various applications.

Features

Robust & compact mechanical strapping head

Automatic tension control for various bundle dimensions (patents registered)

Dual pneumatic press

Up and down stream interlock with complete plug connection

Fully automatic operation with variable conveyor speed

Siemens PLC and touch panel

Free access to strap guides (patents registered)

Easy access to strapping head (patents registered)

Strap end ejector

Adjustable table height between 800 mm and 900 mm

Auto strap ejector
