Transpak TP-702CQ3-S 带集成成方系统的高速瓦楞捆扎机 (5~9mm, 1~32kg)
制造商: Transpak Model: TP-702CQ3-S 来源: Taiwan - 报价要求
- 联系
Arch Size (W x H): 1650 x 450 mm
Strap Width: 5 mm, 6 mm, or 9 mm
Tension Range: 1 - 32 kg
Capacity
Up to 26 bundles/minute (single strap)
Up to 13 bundles/minute (double straps)
Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH
Options
Dual dispensers with auto coil change
Light tower with low strap sensor
Energy saving transit with auto sleep mode
Floor rails
Foot pedal switch
Bus interface for bundle size data transfer from upstream equipment
Video
Watch as reference: TP-702CQ3-S Corrugated Strapper with Integrated Squaring System, Corrugated Bundler - TRANSPAK
Datasheet

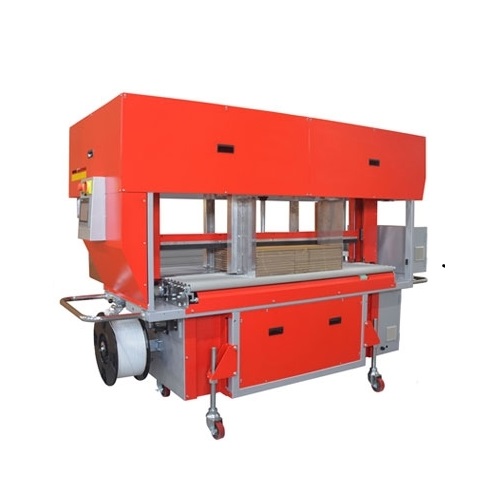

TP-702CQ3-S is an all-electric high-speed corrugated strapper with integrated squaring and backstop functions. It is built on the quality proven Transpak TP-702C corrugated strapper and carries all the innovative features of the TP-702C. Motorized squaring and backstop devices provide precise bundle handling and positioning for forming perfect bundles. It can meet the speed requirement of the fastest Flexo Folder Gluer and Casemaker.
Features
Compact & robust strapping head
3-side squaring bundle control
Automatic bundle size setup system
Motorized full-width press bar
Siemens PLC and HMI (touch panel)
Good for small bundle
Free access to strap guides (patents registered)
Hinged roller table
