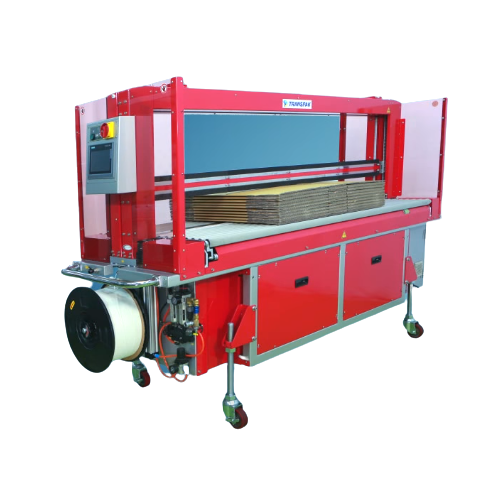

Transpak TP-702C High Speed Corrugated Strapper (Arch 2050Wx450mmH, 5-9mm )

Arch Size: TP-702C-XL   2050 mm(W) x 450 mm(H)

Strap Width: 5 mm, 6 mm, or 9 mm

Tension Range: 1 - 32 kg

Capacity

Up to 33 bundles/minute (single strap)

Up to 20 bundles/minute (double straps)

(Model: TP-702C-L)

Minimum Bundle Size: 200 mm(W) x 20 mm(H) x 300 mm(L)

Bundle Weight: max 40 kg

Transport Speed: 15 – 60 M/minute

Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH



Options

Siemens HMI (touch panel)

Light tower with low strap sensor

Adjustable backstop

Foot pedal switch

Strapping cycle counter

Without press bar


Detail

VIDEO

Watch as reference: TP-702C High Speed Corrugated Strapper

Datasheet


TP-702C corrugated strapper is built with Transpak Mercury strapping head and DC brushless motor direct drive technology. It's also equipped with the state-of-the-art Siemens PLC, electronic controls, proximity sensors, etc. High strapping speed, low maintenance requirement, and proven reliability make it particularly suitable for the sheet plants.

Features

Robust & compact mechanical strapping head

Siemens PLC

Free access to strap guides (patents registered)

Hinged roller table

Auto strap ejector

Patented jammed-strap ejection device

Full-width pneumatic press

Multiple strap function

Variable conveyor speed

Strap end ejector

Adjustable table height between 700mm and 1000 mm
