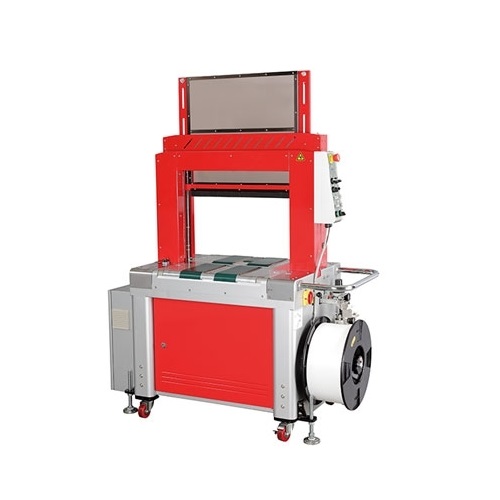

Transpak TP-702BP Mercury Transit Fully Automatic Strapping Machines (Transit belt, compression press, 5-12mm, 1-55kg)

Strap Width: 5 mm, 6 mm, 9 mm or 12 mm

Tension Range

1-32 kg (for 5 mm, 6 mm, 9 mm)

1-55 kg (for 12 mm)

Capacity: Up to 40 packages/minute (Cycle speed up to 65 cycles/minute)

Weight: 250 kg

Pneumatic Source: 6 bar

Air Consumption: 7.5 liter/cycle

Electrical Requirements

110V, 220V, 230V, 240V 50/60Hz 1PH

220V, 380V, 400V, 415V 50/60Hz 3PH

Options

Siemens PLC

Light tower with low strap sensor

Energy saving transit with auto sleep mode

Strapping in the center of the bundle

Extension belt-driven table of 200 mm on upstream and downstream sides

Lower adjustable table height (750 mm – 900 mm)

Detail

VIDEO

Watch as refernce: TP-702B Fully Automatic Strapping Machines - TRANSPAK


Datasheet


Mercury Transit TP-702BP is a fully automatic strapping machine with compression press for production and packaging lines. It is suitable for 5 mm, 6 mm, 9 mm, or 12 mm PP strapping. TP-702BP is the fastest and most reliable strapping machine for general applications on the market today.

Features

Robust & compact mechanical strapping head

With pneumatic press

Waist-high auto strap feeding

Free access to strap guides (patents registered)

Electronic tension control

Auto strap ejector

Hinged top plates

Multiple strap function for single, double, continuous strapping, or transit mode

Variable conveyor speed between 10 and 60 meters/minute

Up and down stream interlock with complete plug connection

Easy bundle flow direction change

Good to strap small package with minimum size 120 mm in width and 10 mm in height

Adjustable table height between 800 mm and 900 mm
