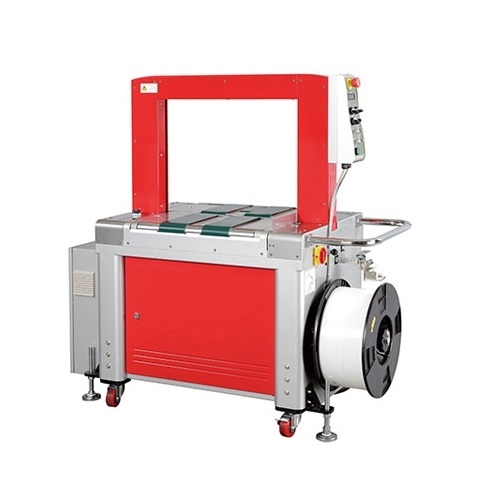

Transpak TP-702B Mercury Transit Fully Automatic Strapping Machines (Transit belt, 5-12mm, 1-55kg)

Strap Width: 5 mm, 6 mm, 9 mm or 12 mm

Tension Range

1-32 kg (for 5 mm, 6 mm, 9 mm)

1-55 kg (for 12 mm)

Capacity: Up to 40 packages/minute (Cycle speed up to 65 cycles/minute)

Weight: 225 kg

Electrical Requirements

110V, 220V, 230V, 240V 50/60Hz 1PH

220V, 380V, 400V, 415V 50/60Hz 3PH

Options

Siemens PLC

Light tower with low strap sensor

Energy saving transit with auto sleep mode

Strapping in the center of the bundle

Extension belt-driven table of 200 mm on upstream and downstream sides

Lower adjustable table height (750 mm – 900 mm)

Detail

VIDEO

Watch as refernce: TP-702B Fully Automatic Strapping Machines - TRANSPAK


Datasheet


Mercury Transit TP-702B is a fully automatic strapping machine for production and packaging lines. It is suitable for 5 mm, 6 mm, 9 mm, or 12 mm PP strapping. TP-702B is the fastest and most reliable strapping machine for general applications on the market today.

Features

Robust & compact mechanical strapping head

Waist-high auto strap feeding

Free access to strap guides (patents registered)

Electronic tension control

Auto strap ejector

Hinged top plates

Multiple strap function for single, double, continuous strapping, or transit mode

Variable conveyor speed between 10 and 60 meters/minute

Up and down stream interlock with complete plug connection

Easy bundle flow direction change

Good to strap small package with minimum size 120 mm in width and 10 mm in height

Adjustable table height between 800 mm and 900 mm
