Transpak TP-702AH Mercury Transit 全自动捆扎机 (Roller-driven, 5-12mm, 1-45kg)

Strap Width: 5 mm, 6 mm, 9 mm or 12 mm

Tension Range

1-32 kg (for 5 mm, 6 mm, 9 mm)

1-45 kg (for 12 mm)

Capacity: Up to 36 packages/minute (Cycle speed up to 65 cycles/minute)

Maximum Package Weight: 80 kg

Weight: 290 kg

Electrical Requirements

110V, 220V, 230V, 240V 50/60Hz 1PH

220V, 380V, 400V, 415V 50/60Hz 3PH

Options

Dual channel E-Stop

Light tower with low strap sensor

Energy saving transit with auto sleep mode

Strapping in the center of the bundle & strapping controlled with 2 photo eyes

Lower adjustable table height (750 mm – 900 mm)

Automatic tension control by package height detection (3 stage tension)

Automatically determining the number of straps by package length

Signal exchange via 16 pin connector

Details

VIDEO

Watch as reference: TP-702B Fully Automatic Strapping Machines - TRANSPAK


Datasheet

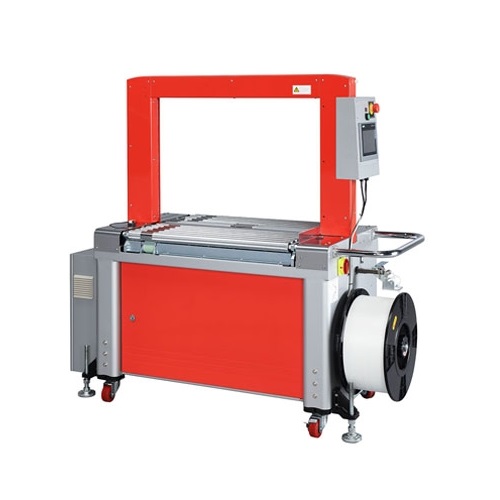

Mercury Transit TP-702AH is a fully automatic strapping machine with roller-driven table and Siemens PLC & HMI for production and packaging lines. It is suitable for 5 mm, 6 mm, 9 mm, or 12 mm PP strapping. TP-702AH is the fastest and most reliable strapping machine for general applications on the market today.

Features

Robust & compact mechanical strapping head

Roller-driven table for heavy load packages

Equipped with Siemens PLC and HMI as standard

Waist-high auto strap feeding

Free access to strap guides (patents registered)

Electronic tension control

Auto strap ejector

Hinged top plates

Diverse strapping patterns

Variable conveyor speed between 15 and 60 meters/minute

Up and down stream interlock with complete plug connection

Easy bundle flow direction change

Good for heavy packages

Adjustable table height between 800 mm and 900 mm
