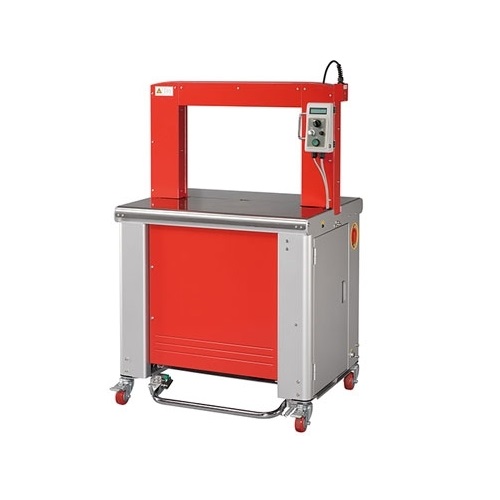

Transpak TP-702 Mercury (1 ~ 32 kg)

Capacity

Up to 65 cycles/minute (TP-702-59)

Up to 60 cycles/minute (TP-702-12)

Strap Width

5 mm, 6 mm, or 9 mm (TP-702-59)

12 mm (TP-702-12)

Tension Range

1 to 32 kg (TP-702-59)

1 to 45 kg (TP-702-12)

(Higher tension is on request)

Weight

158 kg (TP-702-59)

167 kg (TP-702-12)

Electrical Requirements: 110V, 220V, 230V, 240V 50/60Hz 1PH

Options

Photo-eye switch

Rear foot bar switch

Foot pedal switch

Lower adjustable table height (770 mm - 820 mm)

Details
Video

Datasheet


Features

Robust & compact mechanical strapping head

High speed up to 65 straps per minute

Free access to strap guides (patents registered)

Waist-high auto strap feeding

Waist-high quick coil change (patents registered)

Turnable operating control panel

Auto strap ejector

Sensor controlled heater

Low voltage

Strap end ejector

Front foot bar switch

Adjustable table height between 820 mm and 920 mm
