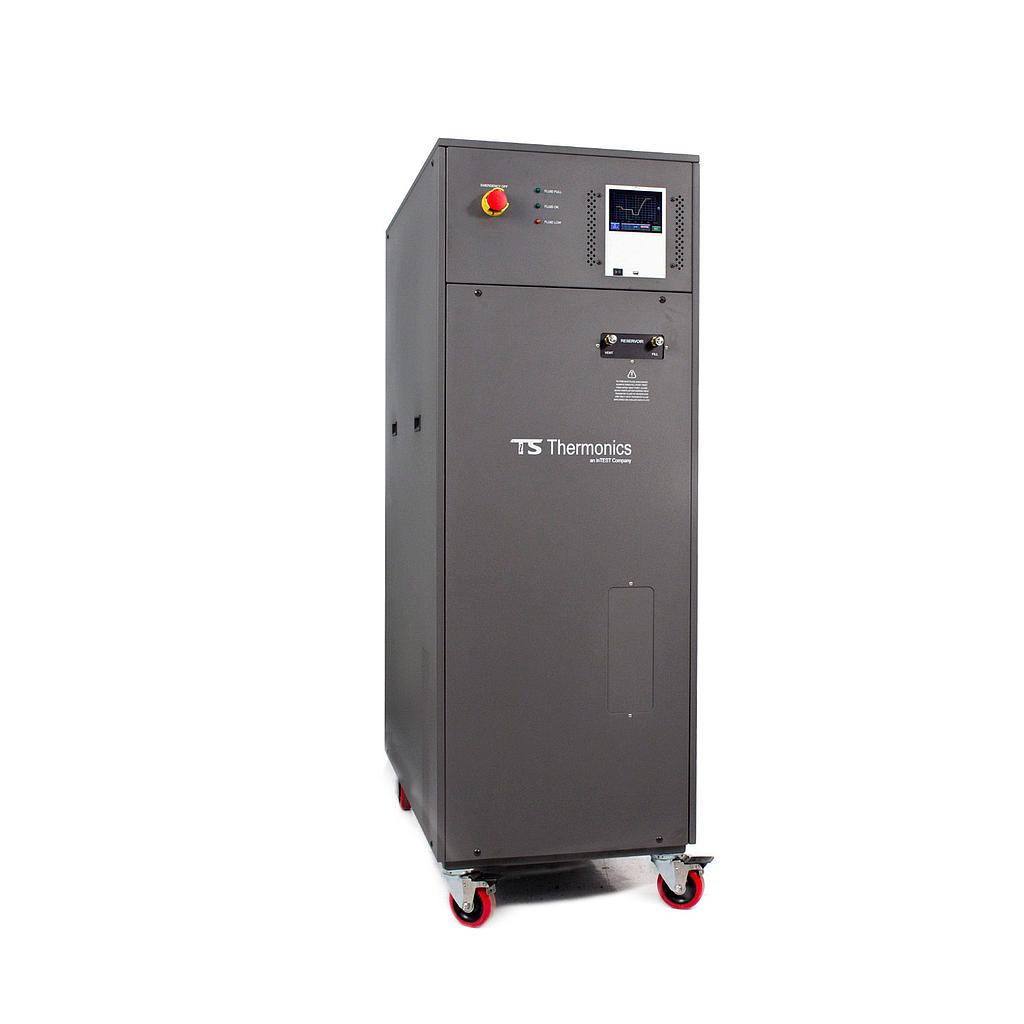

Thermonics W-40-3100 低温液体冷却器 (-40~50°C)

Cooling and heating capacity

Capacity: 3.1kW @ -40°C

Condenser: Water-cooled

Process Heater: 1.7kW

Process Fluid Set Point Range: -40 to +50°C

Fluid Stability: ±0.5°C (at rated load)

Pump and process fluid

Pump: Gear or Turbine

Process Fluid: Compatible with a variety of process fluids. Published specifications using Syltherm XLT.

Wetted Materials: Standard materials include copper, nickel, brass, and plastic. Optional: Fully stainless steel

Flow Rate: 4 GPM (15.1 LPM) at 50 PSIG. Optional: Flow monitoring and control

Available Pressure: 50 PSIG (or less), Optional: Pressure monitoring and control

Fluid Connections: 0.75” NPT

Controls and ompliance

User Interface: 5.7” color touch-screen with temperature graphing and charting

Temperature Measurement Range: -210 to +680°C, Resolution: 0.1°C full scale

Remote Communications: Ethernet, Serial-USB, Web server. Optional: RS-232

Alarms: Low Flow, Low Reservoir, Out-of-temp Range. Optional: Drip Tray

Diagnostics: Runtime hours (controller, chiller, compressor, pump), system performance log, valve activation counts, enclosure temperature

Chiller Compliance: CE / RoHS / designed to meet UL1995/UL61010

Operating requirements

Ambient Temperature Range: 10 to 40°C

Power Requirement: 3-phase, 208 to 230v, 60Hz.

Facility Water Requirements:

Flow: 7.0 to 12.0 GPM (26.5 to 45.4 LPM)

Temperature: 10 to 32°C (20°C nominal)

Pressure: 10 to 50 PSIG (40 PSIG nominal)

Connection: 0.75” NPT

System Dimensions (approx.): 31.0”W X 48.0”D X 64.0”H (78.7 X 121.9 X 162.6cm)
