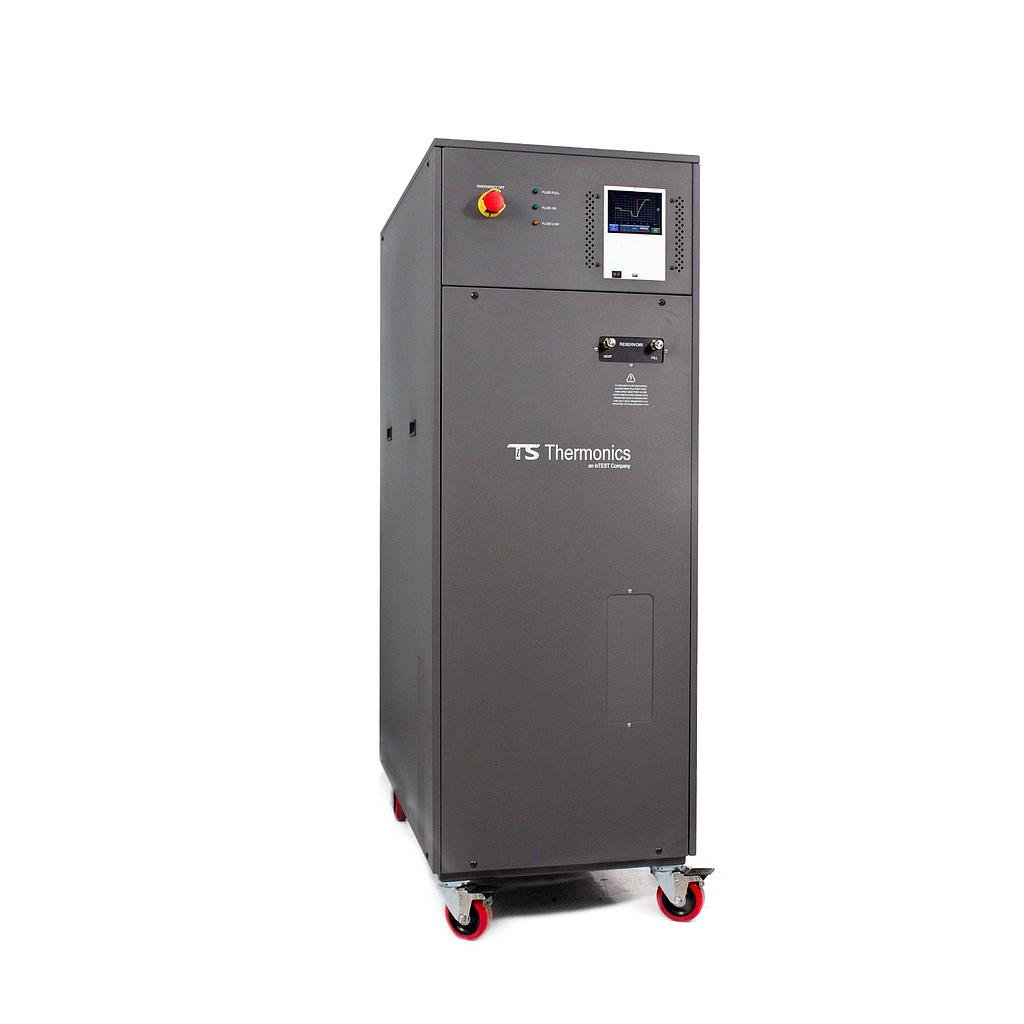

Thermonics W-40-1100 低温液体冷却器 (-40~50°C,1,7kW,0,5”NPT)

CHILLER SPECIFICATIONS

Cooling and heating capacity

Cooling Capacity (°C;kW): +25°C;8.0/0°C;8.0/-20°C;4.6/-40°C;1.1/-45°C;0.6

Condenser: Water-cooled

Process Heater: 1.7kW

Process Fluid Set Point Range: -40 to +50°C

Fluid Stability: ±0.5°C (at rated load)

Pump and process fluid

Pump: Gear or Turbine

Process Fluid: Compatible with a variety of process fluids. Published specifications using Syltherm XLT.

Wetted Materials: Standard materials include copper, nickel, brass, and plastic. Optional: Fully stainless steel

Flow Rate: 4 GPM (15.1 LPM) at 50 PSIG. Optional: Flow monitoring and control

Available Pressure: 50 PSIG (or less), Optional: Pressure monitoring and control

Fluid Connections: 0.5” NPT

Controls and ompliance

User Interface: 5.7” color touch-screen with temperature graphing and charting

Temperature Measurement Range: -210 to +680°C, Resolution: 0.1°C full scale

Remote Communications: Ethernet, Serial-USB, Web server. Optional: RS-232

Alarms: Low Flow, Low Reservoir, Out-of-temp Range. Optional: Drip Tray

Diagnostics: Runtime hours (controller, chiller, compressor, pump), system performance log, valve activation counts, enclosure temperature

Chiller Compliance: CE / RoHS / designed to meet UL1995/UL61010

Operating requirements

Ambient Temperature Range: 10 to 40°C

Power Requirement: 3-phase, 208 to 230v, 60Hz. Note: cooling and heating capacity reduced by approximately

20% fr 50Hz systems

Facility Water Requirements Flow: 2.0 to 6.0 GPM (7.6 to 22.7 LPM), Temperature: 10 to 32°C (20°C nominal)

Pressure: 10 to 50 PSIG (40 PSIG nominal), Connection: 0.75” NPT

System Dimensions (approx.): 43”W X 60”D X 78.0”H (109.2 X 152.4 X 198.1cm)
