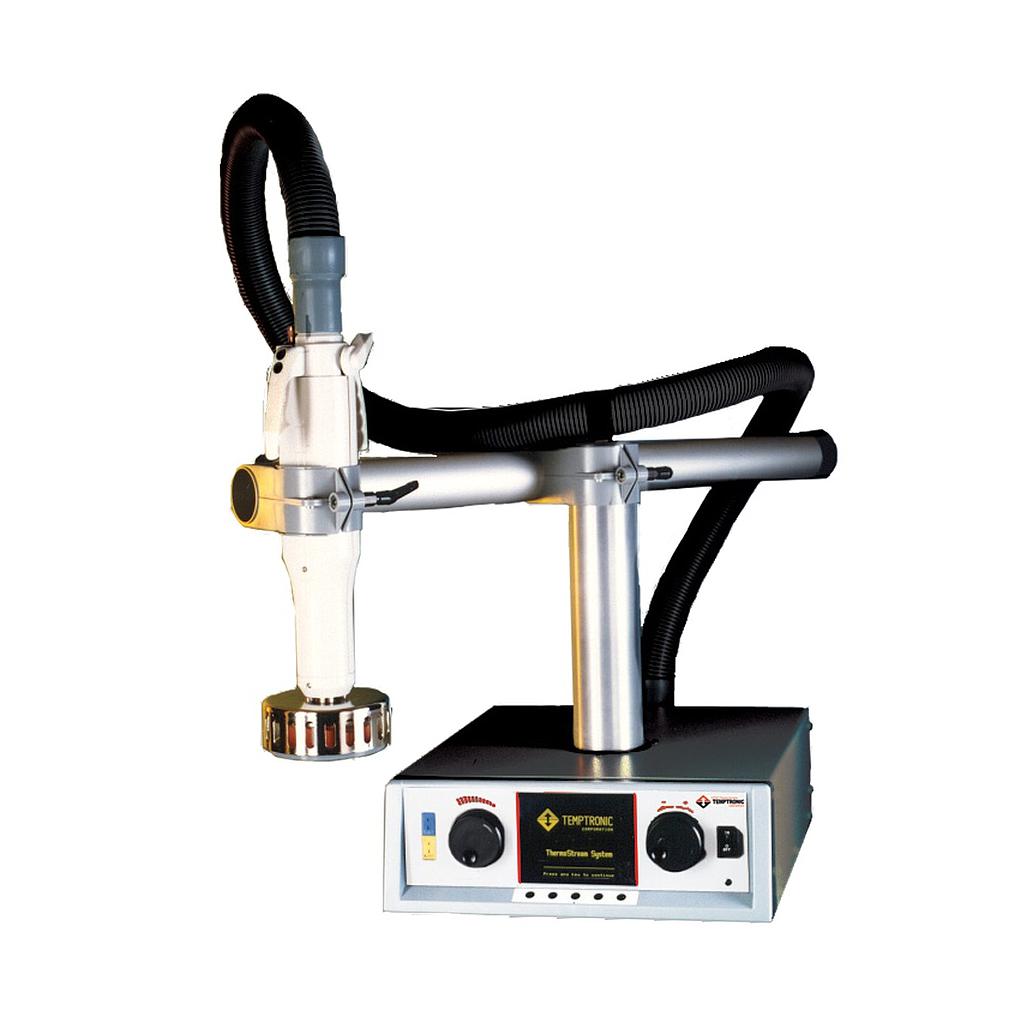

Temptronic ATS-505 便携式温度测试环境 (-20~+ 225°C(50 / 60Hz),+/-0,1°C)

Temperature Range: -20 ~ +225°C (50/60Hz) No LN2 or LCO2 Required

Transition Rates

Heating: 0 to +125°C, <3 min

Cooling: +125 to 0°C, <4 min

System Airflow Output: 4 ~ 10 scfm (1.9 ~ 4.7 l/s) Continuous

Temperature control

Temperature Display & Resolution: +/- 0.1°C

Temperature Accuracy: 1.0°C (when calibrated against NIST standard)

DUT Temperature Control: Proprietary control algorithm enables DUT temperature to be directly controlled

DUT Sensor Ports: Thermocouples (type T & K)

Power: 200 - 250 VAC (230V nominal), 50/60Hz 30 amp, 1phase

Compressed air

Clean, Dry Air (CDA): Filtered to 5 micron particulate contamination.

Oil Content: <0.1 ppm, by weight, filtered to 0.01 micron oil contaminant.

Dewpoint: ambient to -40°C

Air Supply Pressure: 5.6 to 7kg /cm2 (80 to 90 PSIG), 5.6 kg/cm (90 PSIG) nominal

Total Air Flow Rate Required: 4.0 to 6.2 l/s (8-13 scfm), 4.5 l/s (9 scfm) nominal

Air Supply Temperature: +20°C to +28°C; +23°C nominal

Operating environment

Operating Temperature: +20°C ~ +28°C; +23°C nominal

Humidity: 0 ~ 60%; 45% nominal

Noise Level: <70dBA
