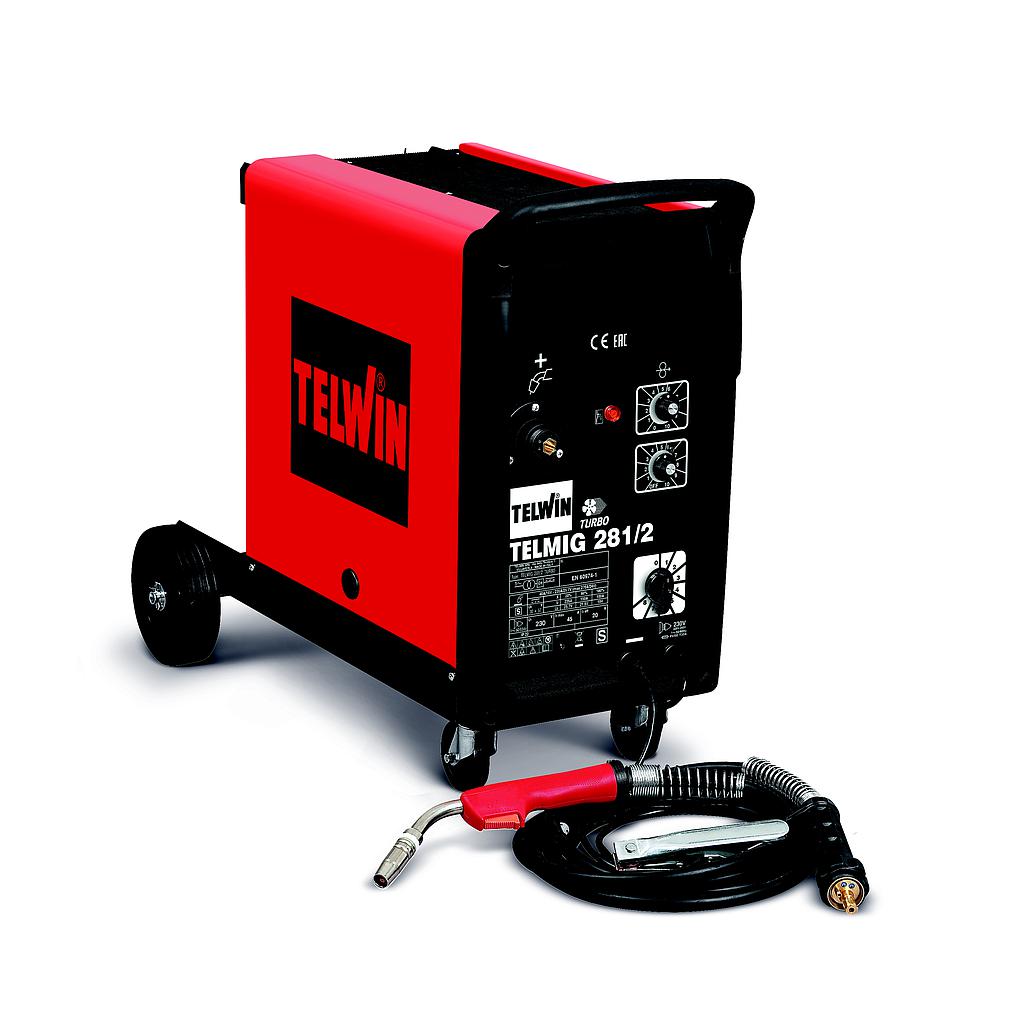

Telwin TELMIG 281/2 MIG/MAG 焊机，TURBO 230V (0,8- 1 mm,0,6 -1,2 mm)

MAX NO LOAD VOLTAGE: 34 V

INOX WELDING WIRE DIAMETER: 0,8 - 1mm

SINGLE PHASE MAINS VOLTAGE: 230 V

MAX ABSORBED POWER: 9,5 kW

ALUMINIUM WELDING WIRE DIAM.: 0,8- 1 mm

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED POWER AT: 60% 5 kW

PROTECTION DEGREE: IP22

CURRENT RANGE: 40 - 270 A

POWER FACTOR: (cosphi) 0,9

DIMENSIONS: 80 x 45 x 65,5 cm

MAX CURRENT DC (EN 60974-1): 235 @20 % A

ADJUSTMENT POSITIONS: 8

WEIGHT: 55 kg

DC CURRENT: 150 A

STEEL WELDING WIRE DIAMETER: 0,6 -1,2 mm

Included Accessories

CABLE 25 MMQ 2 M - 123466

TOLEDO 300 WORK CLAMP - 712231

SPACER - 322499

GAS REGULATOR REFILLABLE BOTTLE - 722341

ARGON GAS BOTTLE IT ADAPTOR - 432036

MT25 MIG TORCH 3M - 742183
