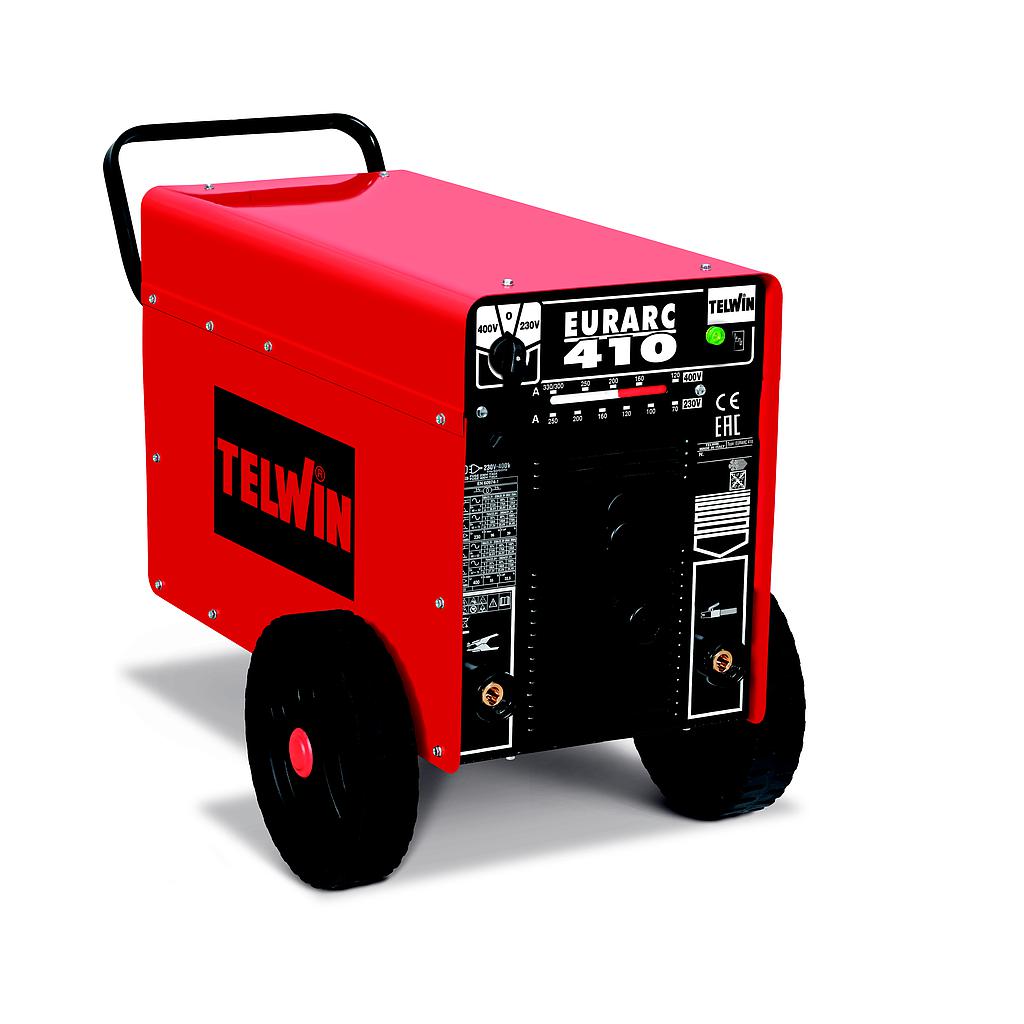

Telwin EURARC 410 230V/400V (2 - 6 mm)

AC CURRENT: 140 A

PROTECTION DEGREE: IP22

SINGLE PHASE MAINS VOLTAGE: 230 V

MAX NO LOAD VOLTAGE: 51 V

DIMENSIONS: 83 x 45,5 x 58 cm

DOUBLE PHASE MAINS VOLTAGE: 400 V

MAX ABSORBED POWER: 12 kW

WEIGHT: 45 kg

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED POWER AT 60% 4,2 kW

CURRENT RANGE: 70 - 330 A

POWER FACTOR (cosphi): 0,75

PIECES/PALLET: 6 pz/pallet

MAX CURRENT (EN 60974-1): 300 @ 10% A

D. USABLE ELECTRODES IN AC: 2 - 6 mm

PIECES/PALLET - B: 3 pz/pallet-B


Details

DATASHEET


MANUAL
