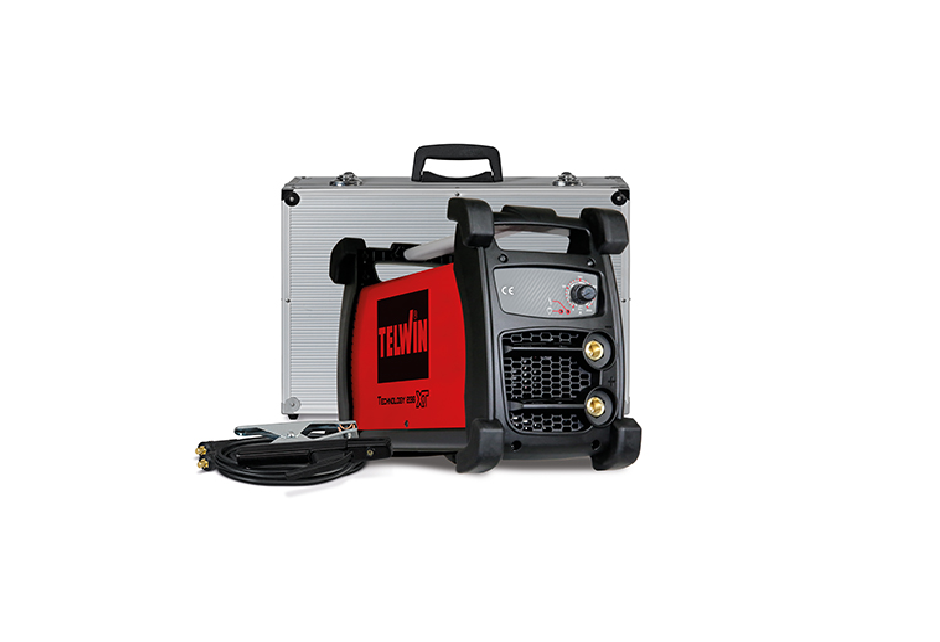

Telwin TECHNOLOGY 236 XT 230V ACX+ALU CASE MMA 直流焊机 (1,6~4mm)

MAX NO LOAD VOLTAGE: 60 V

EFFICIENCY: 89 V

SINGLE PHASE MAINS VOLTAGE: 230 V

MAX ABSORBED CURRENT: 38 A

POWER FACTOR (cosphi): 0,7

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED CURRENT AT 60% - MAX 22A

D. USABLE ELECTRODES IN DC: 1,6 - 4mm

CURRENT RANGE: 5 - 200 A

MAX ABSORBED POWER: 6 kW

PROTECTION DEGREE: IP23

MAX CURRENT DC (EN 60974-1): 200 @35 % A

ABSORBED POWER AT 60% 3,3 kW

DIMENSIONS: 37,5 x 50 x 22 cm

DC CURRENT: 140 A

MOTORGENERATOR MINIMUM POWER: 10 kW

WEIGHT: 10,55 kg


Included Accessories

CABLE - 124887

DALLAS 300 ELECTRODE HOLDER 300A - 712260

CABLE TW05V-A 1X025 02.00M PLUG ATLAS - 125033

ALUMINIUM CARRY CASE - 734600

TOLEDO 300 WORK CLAMP - 712231

Details

DATASHEET


MANUAL
