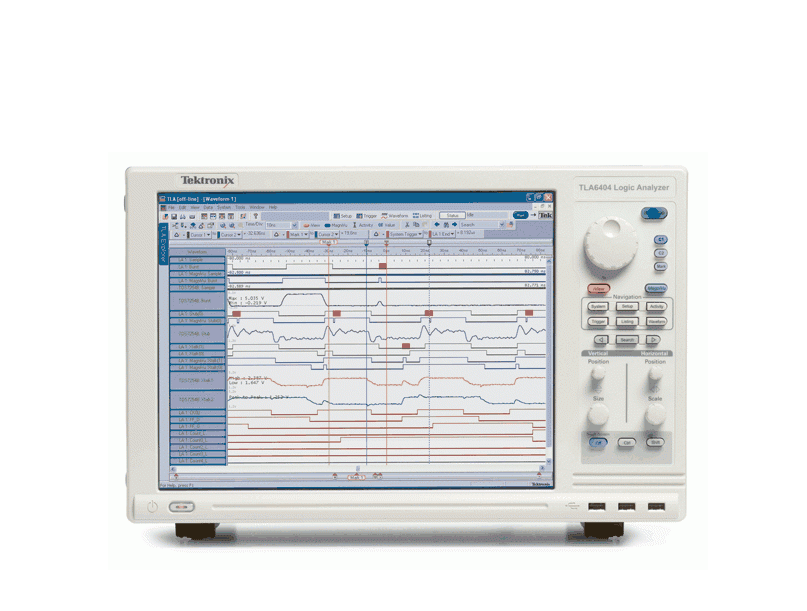

TEKTRONIX TLA6402 Logic Analyzers

Channels : 68

High-speed timing 25 GHz (40 ps) with 128 Kb record length

Maximum timing sample rate (Half/

Full channel)

3.2 GHz / 1.6 GHz

Maximum State clock rate 333 MHz (standard)

667 MHz (with Option 1T)

Maximum State data rate 667 Mb/s (standard)

1333 Mb/s (with Option 1T)

Maximum record length 2 Mb (standard)

4 Mb (Option 1S)

8 Mb (Option 2S)

16 Mb (Option 3S)

32 Mb (Option 4S)

64 Mb (Option 5S)

Analog Mux 4 fixed channels (standard)

Any signal (user selectable) may be routed to 4 output BNCs with Option AM

Probing options (order separately) P5910 - 17-channel General-purpose probe

P5934 - 34-channel Mictor probe

P5960 - 34-channel D-MAX probe

PC characteristics

Operating system Microsoft® Windows® 7 Ultimate, 64-bit

Processor Intel® Core i3-2120, 3.3 GHz, 3M Cache

Chipset Intel® Q67 chipset

Memory 2 × 2 GB DIMM, 4 GB Total

DDR3, 1066 MHZ, PC3-8500

Sound Line In, Line Out, and Mic In connectors

3.5 in., ≥500 GB Serial ATA, 7200 RPM

Optical drive Internal 4.7 GB DVD±R/RW

External display port type One (1) DVI connector and one (1) VGA connector

External display resolution Up to 1920 × 1200 noninterlaced at 32-bit color, each for both primary and secondary displays

Network port Two (2) 10/100/1000 LAN with RJ-45 connector

USB port Five (5) USB 2.0 ports and two (2) USB 3.0 ports. USB ports can be disabled in BIOS.

(This product is discontinuous)
