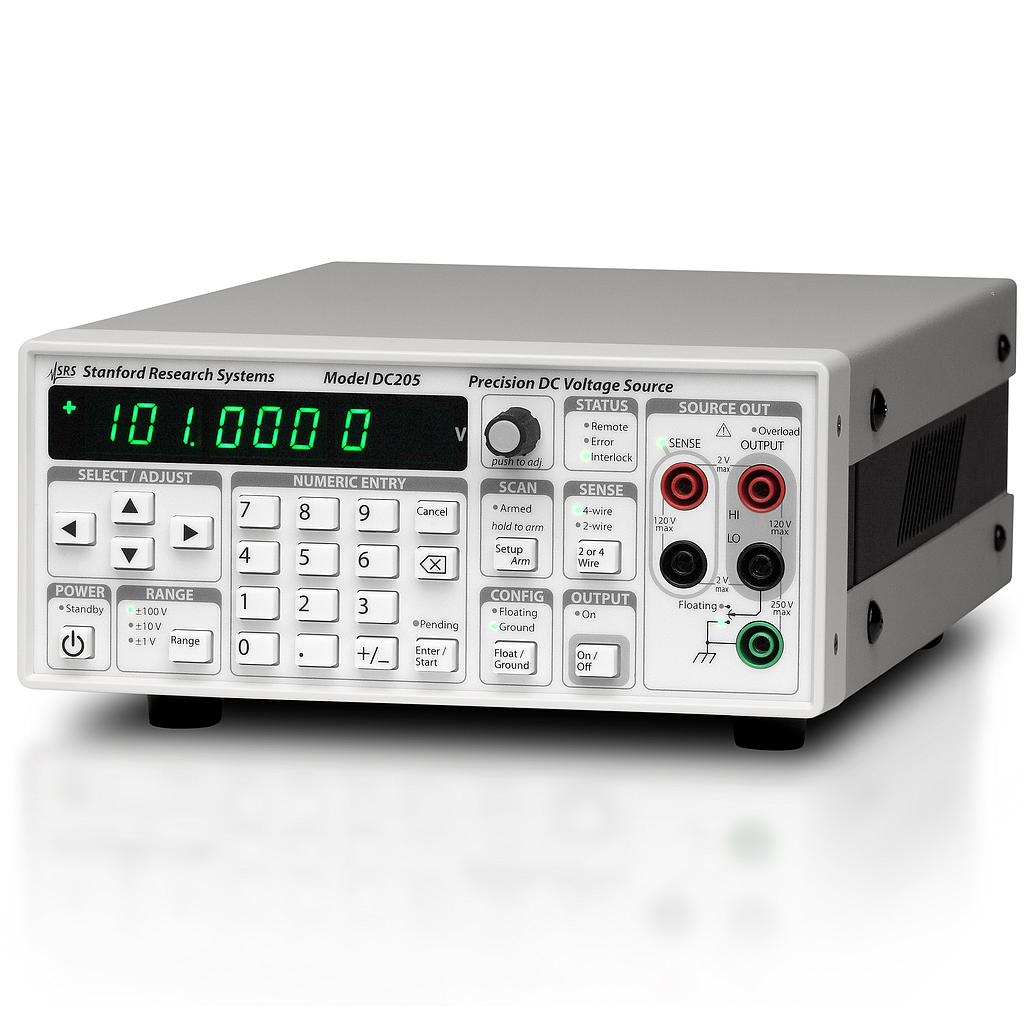

SRS DC205 Precision DC Voltage Source (±100 VDC)

Signal Output:

Output: 2-wire or 4-wire (remote sense); Output can be set to Ground or Float (250 V max.)

±1 V Range:

Full scale: ±1.010000 V

Resolution: 1 µV

Current: 50 mA (max.)

Accuracy:

24 hour: ±(7 ppm of setting + 2 µV)

90 day: ±(12 ppm of setting + 6 µV)

1 year: ±(25 ppm of setting + 10 µV)

Stability: 24 hour: ±(1 ppm of setting + 1  µV)

Temp. Co.: ±(1 ppm of setting + 1 µV) / °C (0 °C to 40 °C)

Noise (typ.): 0.5 µVrms (0.1 Hz to 10 Hz); 9 µVrms (10 Hz to 100 kHz)

±10 V Range:

Full scale: ±10.10000 V

Resolution: 10 µV

Current: 50 mA (max.)

Accuracy:

24 hour: ±(7 ppm of setting + 12  µV)

90 day: ±(12 ppm of setting + 20 µV)

1 year: ±(25 ppm of setting + 20 µV)

Stability: 24 hour: ±(1 ppm of setting + 3 µV)

Temp. Co.: ±(1 ppm of setting + 2 µV) / °C (0 °C to 40 °C)

Noise (typ.): 1.5 µVrms (0.1 Hz to 10 Hz); 12 µVrms (10 Hz to 100 kHz)

±100 V Range:

Full scale: ±101.0000 V

Resolution: 100 µV

Current: 25 mA (max.)

Accuracy:

24 hour: ±(8 ppm of setting + 120 µV

90 day: ±(12 ppm of setting + 200 µV)

1 year: ±(25 ppm of setting + 200 µV)

Stability: 24 hour: ±(1 ppm of setting + 20 µV)

Temp. Co.: ±(1 ppm of setting + 15 µV) / °C (0 °C to 40 °C)

Noise (typ.): 12 µVrms (0.1 Hz to 10 Hz); 50 µVrms (10 Hz to 100 kHz)

Voltage Scanning:

Scan rate: 100 ms to 9999.9 s

Scan type: Ramp or triangle wave, continuous or single shot

Triggering: Scans can be triggered using the rear-panel trigger input, from the front panel, or over one of the computer interfaces

Remote Interfaces:

USB: Virtual COM port with FTDI drivers, 115.2k baud, 8 bits, no parity, 1 stop bit, RTS/CTS flow

RS-232: DB-9 connector, 9600 baud

Fiber Optic: Connection to SX199 Optical Interface Controller. Provides isolated connectivity to GPIB, RS-232 and Ethernet

General:

Operating temp.: 0 °C to 40 °C, non-condensing

Power: <30 W, 100/120/220/240 VAC, 50 Hz or 60 Hz

Dimensions: 8.3" × 3.5" × 13.0" (WHL)

Weight: 10 lbs.
