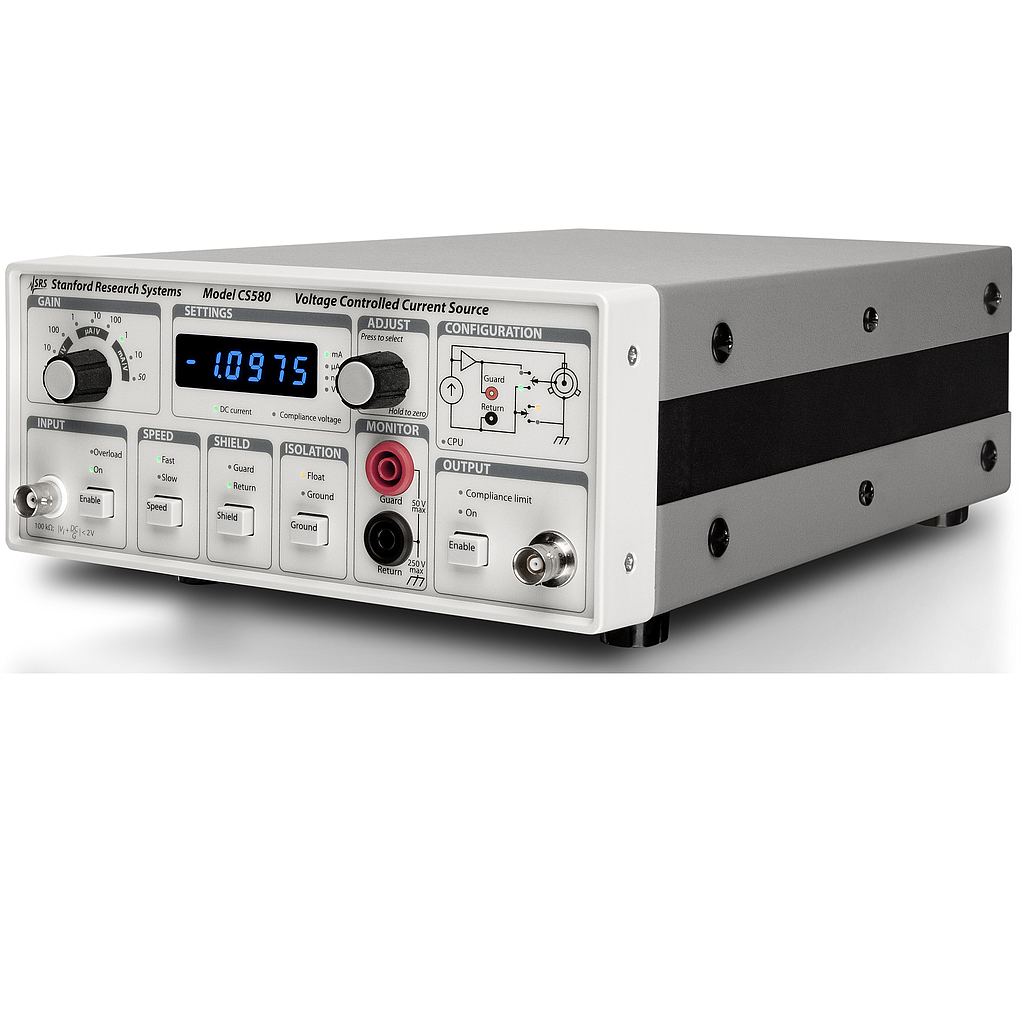

SRS CS580 Voltage-Controlled Current Source (100 fA ~ 100 mA)

Output:

Compliance voltage: 0 to 50 V (bipolar)

Compliance voltage error: 0.5 % + 50 mV

DC output resistance: 1012 Ω (1 nA/V gain)

Output capacitance: <12 pF (filter off); <500 pF (filter on)

Guard output: -50 V to +50 V; 5 kΩ internal resistance

Output power: 5 W (four quadrant sourcing/sinking)

THD: 0.01 % typ.

Output connector: 3-lug Triax for current output; Banana jacks for load voltage monitoring

Common mode voltage: 250 Vrms (DC to 60 Hz)

Common mode isolation: >1 GΩ, <1 nF

Input:

Input range: -2 V to +2 V

Input impedance: 100 kΩ

Input connector: BNC

Remote Interfaces:

RS-232: DB-9 connector, 9600 baud

Optical fiber: Connection to SX199 Optical Interface Controller. Provides connectivity to GPIB, RS-232 and Ethernet

General:

Operating temperature: 0 °C to 40 °C, non-condensing

Power: <30 W, 100/120/220/240 VAC, 50 Hz or 60 Hz

Dimensions: 8.3" × 3.5" × 13.0" (WHL)

Weight: 10 lbs.
