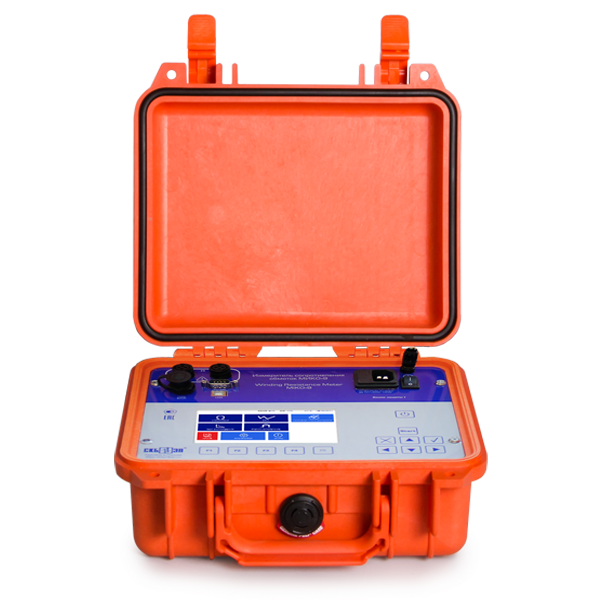

SKB MIKO-9 毫欧表(10A,OLTC检查模式)

Application: Windings of power transformers, instrument current transformers,
electromagnets and electric motors; Compensatory, current-limiting and
other resistors of high-voltage circuit breakers; Contacts and contact connections of power and signal circuits; Cables.
Resistance range: 10µOhm ÷ 30kOhm
Maximum permissible intrinsic error of resistance measurement: ±(0.1%+0.5µOhm)
Measuring current intensity, А: 0.00075 ÷ 10
Relative drift of measuring current intensity, %/s: ±0.002
Maximum output capacity: when powered from the battery: 20W
Maximum output capacity: when powered from the mains: 60W Mains
voltage: AC (valid value): 90 ÷ 253V
Mains voltage: DC: 127 ÷ 354V
Maximum consumed power: 120W
Type of data transmission channel: USB, Bluetooth
IP rating in operating state: IP40
IP for transportation: IP64
Operating temperature range, ºС: -20 ÷ +50
Maximum measuring unit weight, kg: 4.0
Dimensions, mm: 270х250х130
Interface language: English
User manuals language: English
Calibration interval, year: 3

Standard complete set:
+ MIKO-9 measuring unit
+ Mains cable SKB018.09.00.000
+ Ground wire СКБ010.01.00.000
+ Zero resistance equivalent СКБ023.15.00.000
+ Shunt 75ШСММ3
+ VP2B-1V-2А cut-out (2 pcs.)
+ Cable USB 2.0 A-B

Additional complete set (on order)
Measuring cable (set of 2 PCs.) СКБ041.18.00.000 & СКБ041.18.00.000-01
Measuring cable СКБ041.19.00.000
Measuring cable (set of 2 pcs.) СКБ041.26.00.000 СКБ041.26.00.000-01
Test cables for CT and VT СКБ041.21.00.000
Measuring cable extension (set of 2 pcs.) СКБ031.20.00.000
Short-circuiting cable (set of 3 pcs.) СКБ041.23.00.000
Short-circuiting cable (set of 3 pcs.) СКБ035.31.00.000
KMDLAX-6P plug
Reference inductor adaptor СКБ023.12.00.000
Cable and documentation bag СКБ126.06.00.000
Manipulating rod
