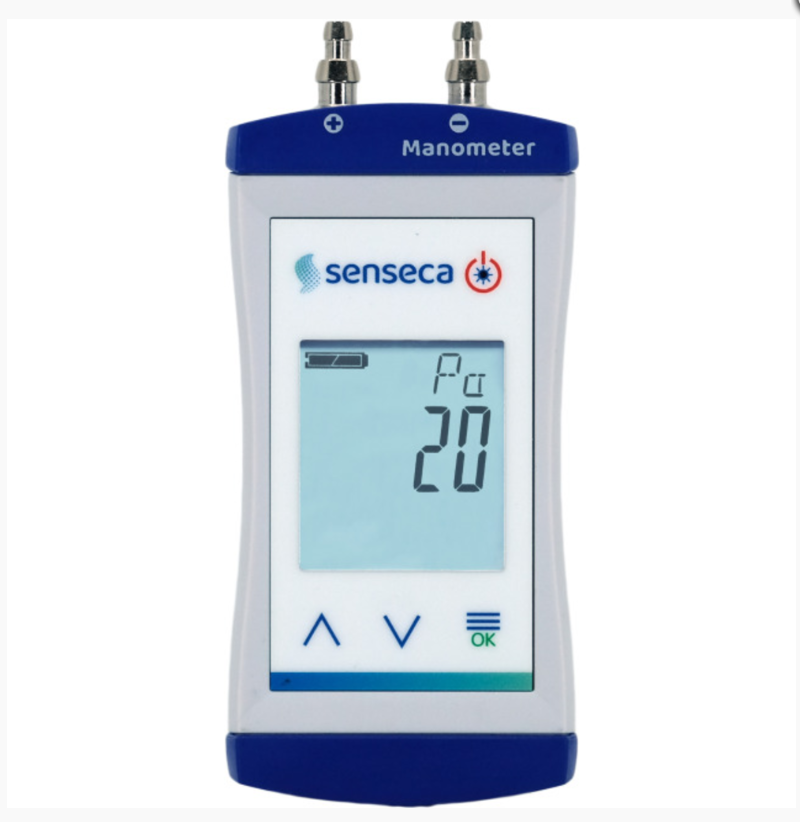

Senseca ECO 210-3-MCM Fine manometer (-2000..+2000 Pa to -200.0..+200.0 hPa (mbar))

Set-Option: Device in carton box, testprotocol, batteries, manual, without temperature probe

Pressure connection: 2x G1/8 inch port incl. mini quick coupling plug, nominal width 2.7

Additional functions: NULL / Tare function; FINE: With 0.1 Pa resolution; AVR: Averaging over 2 s / 5 s / 10 s

Adjustment: Zero point and slope

Connections: 2 tube connections, interchangeable with G1/8 universal ports

Dimensions: 108 x 54 x 8 mm without pressure connection

Display: 3-line segment LCD, additional symbols, illuminated (white, illumination time adjustable), overhead display on key press

Display units/: Pa, hPa, mbar, PSI, mmHg (Torr)

Housing material: Break-proof ABS housing

Max. overload: +/- 1700 hPa

Measurement rate: Slow: 2.5 measurements per second

Fast: 25 measurements per secon

Measurements: Difference

Operating conditions: -20 to +50 °C; 0 to 95 % r.h. (temporarily 100 % r.h.)

Power consumption: ca. 1 mA (slow measurement SLO), battery life ca. 3000 h

Power supply: 2 x AA battery (included in the scope of delivery)

Precision max. (-20 ... 50 °C) +/- 1 % FSS

Precision typ. @ 25 °C +/- 0.1 % FSS

Protection type: IP 67 (pressure connections must be protected from soiling and moisture)

Standard functions: Min/Max/Hold, Auto-Power-Off-function / if activated, the product switches off automatically

Storage temperature: -20...70 °C

Weight: 150 g incl. battery

Measuring range: choice from -2000..+2000 Pa to -200.0..+200.0 hPa (mbar)

(FINE: -200.0..+200.0 Pa)

Current supply: 2 x AA batteries

Working temperature: -20 ... +50 °C
