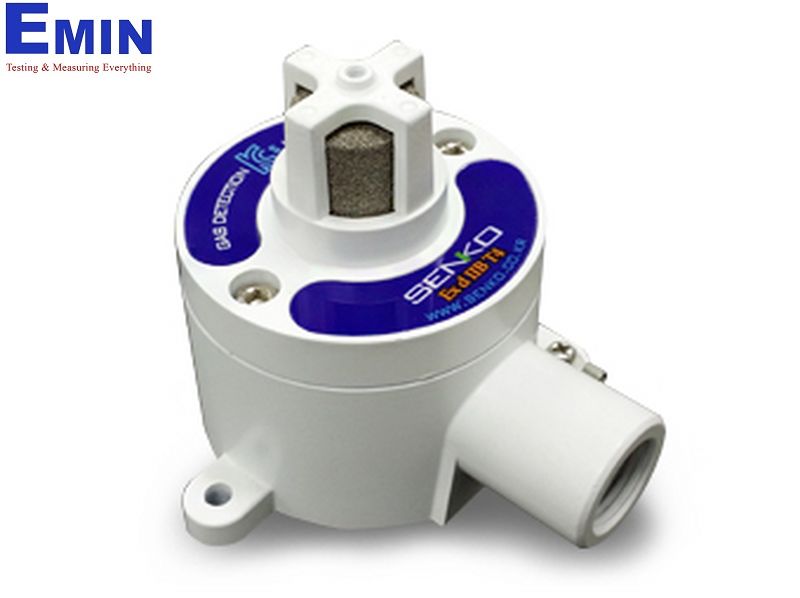

SENKO SI-100D(LPG)气体检漏仪

Manufacturer: Senko
Model: SI-100D

Device description: SI-100D SET is a combustible gas detector that consists of a sensing unit and a receiver. This is used to detect gas leaks in the pipe or valve. SI-100D SET is a low-priced entry-level products.
Major Applications: Steelworks, petrochemical, refining, shipbuilding, wastewater treatment plants and septic tank, LPG tank facilities, LNG gas plant
Measuring gas: LNG/LPG(methane/propane)
Measuring type: Diffusion type
Measuring method: Catalytic
Measuring range: 0~100%LEL
Sensor life time: > 2 years
Response time: < 10sec/90%scale
Accuracy:    ±3%/Full scale
Output signal: 4-20mA DC
Cable/Distance: CVVSB1.5SQ x 3Wire (Power + signal) / 2,500m max
Conduit connection: NPT 1/2"
Mounting type: Wall mount
Operating temperature: -20℃~+50℃
Operating humidity: 0%~95% RH(non-condensing)
Operating power: 24V DC +/- 20%, < 90mAh
Materianl: Aluminium
Dimensions: 93(W) × 106(H) × 89(D)mm
Weight: 0.6kg
