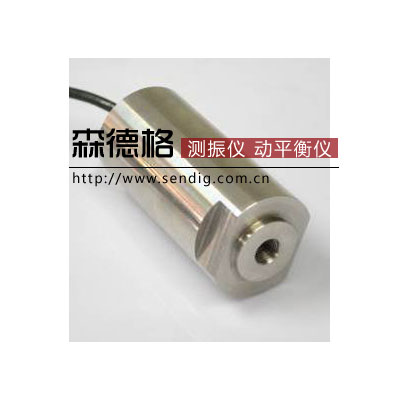

Sendig SS-430 超声应力/声发射传感器
制造商: SENDIG Model: SS-430 保障: 12 Month - 报价要求
- 联系
Specifications
Measurement Range: 0-10 SEL (stress energy level units)
Frequency Response: 7kHz to 50 kHz
Grounding: Base isolated
Axis Orientation: Any
Transverse Sensitivity: Less than 5%
Electrical
Output Current: 4-20 mA DC proportional to 0-10 SEL (stress energy)
Supply Voltage: 15 - 30 Volts DC (for 4-20 mA)
Settling Time: 2 seconds
Output Impedance: Loop Resistance 600 Ohms max. at 24 Volts
Grounding: Case Isolated
Environmental
Sensor Temperature Range: -40 to +85oc
Sealing: IP68
Maximum Shock: 5000 g
Emissions: EN61000-6-4:2007
Immunity: EN61000-6-2 :2005 CE
Electromagnetic Sensitivity: CE
Mechanicil
Case Material: Stainless Steel
Sealing: Hermetically Sealed
Mounting Threads: 3/8 - 24 UNF (MS Optional)
Mounting Torque: 8 Nm
Size: 40 x 100 mm
Weight: 410 gms(nominal)
Cable: 1 m x 2-conductor shielded
