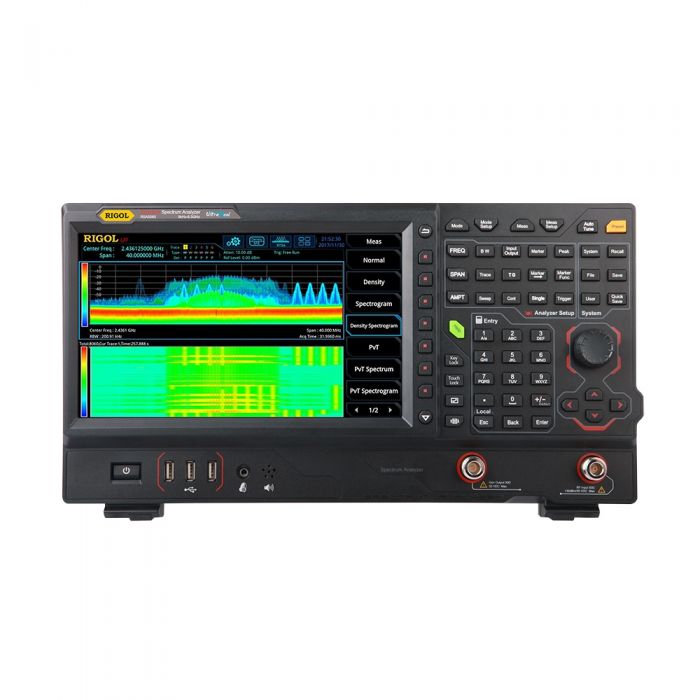

Rigol RSA5065-TG 实时频谱分析仪（9kHz~6.5Ghz，实时25Mhz，跟踪信号发生器）

Frequency Range 9 kHz to 6.5 GHz
Reference Frequency 10 MHz
Accuracy ±[(time since last calibration × aging rate) + temperature stability + calibration accuracy]
Initial Calibration
Accuracy Standard <1 ppm
Option OCXO-C08 <0.1 ppm
Temperature Stability 0℃ to 50℃ , with the reference 25℃
Standard <0.5 ppm
Option OCXO-C08 <0.005 ppm
Aging Rate
Standard <1 ppm/year
Option OCXO-C08 <0.03 ppm/year
Frequency Readout Accuracy
Marker Frequency Resolution span/(number of sweep points - 1)
Marker Frequency Uncertainty ±(marker frequency readout × reference frequency accuracy + 1% × span + 10% ×
resolution bandwidth + marker frequency resolution)
Frequency Counter
Resolution 1 Hz
Uncertainty ±(marker frequency readout × reference frequency accuracy + counter resolution)
Frequency Span
Range 0 Hz, 10 Hz to maximum frequency
Resolution 2 Hz
Uncertainty ±span/(number of sweep points - 1)
SSB Phase Noise
20℃ to 30℃，fc = 500 MHz
Carrier Offset
1 kHz <-95 dBc/Hz (typical)
10 kHz <-106 dBc/Hz, <-108 dBc/Hz (typical)
100 kHz <-106 dBc/Hz, <-108 dBc/Hz (typical)
1 MHz <-115 dBc/Hz, <-117 dBc/Hz (typical)
Amplitude
Measurement Range
Range
fc ≥ 10 MHz
DANL to +30 dBm
Maximum Safe Input Level[1]
DC Voltage 50 V
CW RF Power +30 dBm, attenuation ≥ 40 dB, preamp off.
-10 dBm, attenuation = 20 dB, preamp on.
Maximum Damage Level
CW RF Power +33 dBm (2 W)
Sweep Time span ≥ 10 Hz 1 ms to 4,000 s
zero span 1 μs to 6,000 s
eal-time Analysis Bandwidth
25 MHz
40 MHz (Option RSA5000-B40)
Min. Signal Duration for 100% POI at
the Full-Scale Accuracy
maximum span, default Kaiser window
7.45 μs
Trace Detector pos-peak, neg-peak, sample, average
Number of Traces 6
Window Type Hanning, Blackman-Harris, Rectangular, Flattop, Kaiser, and Gaussian
Display
Type capacitive multi-touch screen
Resolution 1024 × 600 pixels
Size 10.1''
Color 24-bit color
Printer Supported
Protocol network printer
Mass Memory
Mass Memory Internal Storage 512 MB (nominal)
External Storage USB storage device (not supplied)
Frequency Range 100 kHz to 6.5 GHz
Output Level Range -40 dBm to 0 dBm
Output Level Resolution 1 dB
Input Voltage Range, AC 100 V to 240 V (nominal)
AC Frequency 45 Hz to 440 Hz
Power Consumption 55 W (typical), max. 90 W with all options
