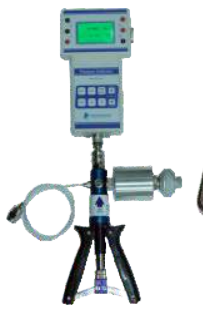

R&D Instrument APCK 40 压力校准器套件(气动,-1bar真空~40 bar; 0.025%)



Over Pressure Alarm : 20% of Full Scale
Pressure Media : Compatible to 316 Stainless Steel
Current Terminal Input
Protection : Fuse: 100mA / 250V
Display : Graphical Display
Backlight : LED Backlight
Power Supply : Li-ion Rechargeable Battery
Low Battery Indicator : Yes
Auto Power Off : 15 minutes
Battery Backup : 19 hours
Pressure Connection : 1/4" BSP Female
Operating Temperature : 10 to 50°C
Instrument Casing: ABS Plastic
Instrument Dimensions: 200 mm x 110 mm x 60 / 35 mm (LxWxD)
Instrument Weight : 650 gms
Specification:
Range: -1 bar Vacuum to 40 bar
Resolution: 0.001
Accuracy: ±0.025% of F.S.
Selectable Pressure Units: bar, kg/cm², MPa, mH2O, atm, psi
inHg, ftH2O, kPa, inH2O, mmHg,mbar, cmH2O
Measurements
Facility: mA2; Range: 0 to 50 mA; Resolution: 0.001 mA; Accuracy: ±0.025% of Reading + 10 µA
Facility: Volts; Range: 0 to 30 V; Resolution: 0.001 V; Accuracy: ±0.025% of Reading + 3 mV
Standard Delivery
1. Instrument : 1 no.
2. Hydraulic Hand Pump with
Divider Block Assembly : 1 no.
3. Carrying Case : 1 no.
4. Test Lead (2 wire) : 2 nos.
5. Charger : 1 no.
6. Adapters (each 1 no.) : 1/4" BSP (M) x 1/4" NPT (F),
3/8" BSP (F), 3/8" NPT (F), 1/2" BSP (F), 1/2" NPT (F)
7. Nylon Seals : 1/4", 1/2" & 3/8" - 5 nos. each
8. Quick Coupling Connector
9. User Manual : 1 no.
10. Traceable Calibration Certificate
Optional
1.RS232 with RnD Cal-P Software
2. Accredited (NABL) Calibration Certificate
as per ISO/IEC 17025:2005 Standard
