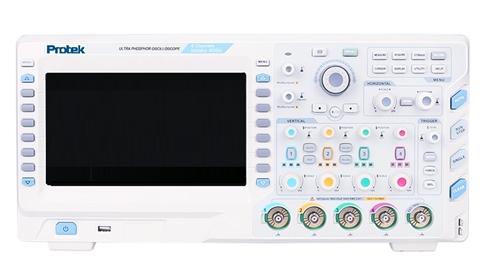

Protek 8354数字混合信号示波器(350Mhz,4通道,4Gsa / s)

Freq Band width 350MHz
Channel 4Ch + EXT
Real-Time Sampling 4GSa/s
Waveform Capture Rage 200,000 wfms/s
Input Impedance (1MΩ±2%) // (20pF±3pF)
Memory Depth 280Mpts
Rise Time ≤1.0 ns
Time base range 5ns/div ~ 50s/div
DC Accuracy ± 2 % of Full Scale
Max Waveform
Storage 200,000 waveforms
Voltage base Range 1 mV/div ~ 5V/div (1MΩ) ±40V
1 mV/div ~ 1V/div (50Ω) ±12V
Vertical resolution 8 bit
BUS
Decoding(Option)
Standard Parallel decoding ; RS232/UART,
I2C, SPI
Math function A+B, A-B, A×B, A/B, FFT, Logic Operation(√), Editable Advanced
Data Storage 20 Data(Waveform & Set value)
Automatic
Measurement
Max, Min, Top, Bottom, Middle,
PK-PK, Amplitude, Average, RMS, Cycle Average, Cycle RMS,
Area, Cycle Area, Frequency, Period, Rising, Falling, +Width,
-Width, BrstW, Overshoot, Preshoot, +Duty, -Duty, RiseDelay,
FallDelay, Phase
Dimensions & Weight :456mm(W) x 210mm(H) x 120mm(D)/ ±4.5kg
Standard products Probe Kit Set, Power Cable, Manual
Input Power 100V~240VACrms,50Hz/60Hz
