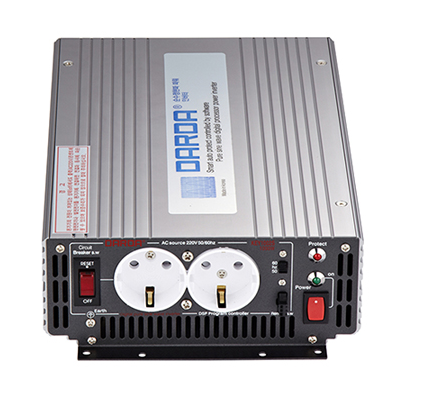

PNKHITECH KEY2015S 逆变器（24VDC / AC225,1500W，纯正弦波）

- DC input voltage:DC24V
- DC voltage standard: 26.4V
- AC voltage standard: AC225V
- Output power continuous: 1500W
- Surge rating: 3000w
- Effi ciency et rated power: 89%
- No load current: no fan: 0.40A
                           on fan: 0.66A
- Low battery shut down: 20.0V
- Low battery return on power: 22.4V
- High battery shut down: 31.7V
- High battery return on power: 30.0V
- Equency[50/60] selection: 60HZ
- Regulation: Max5%
- Over temperature protection:-25℃ ~ +72℃ (75℃±5℃)
- Over temperature power on: 58℃
- Output wave form: Pure sine wave
- Cooling fan [auto fan]: Fan on temperature 43℃ (±0.5℃)
- Insulation transformer: 2KV ~ 2.5KV
- Over load protection:
                                Input fuse: 40A(2EA)
                                Output sensor: 20A(sensor)
                                Output circuit breaker: 10A(Fuse)
                                AC outlet/terminal: 2P Outlet 16A
- Dimensions [W×H×D(mm)]: 186×76×365mm
                                             195x89x365
- Weight: 4.4kg/3.5kg
