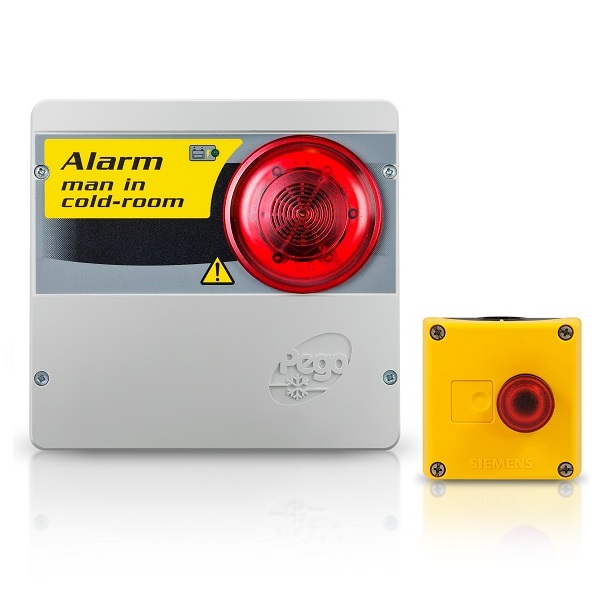

PEGO 100APE03 冷藏室报警人


Control unit: 203x193x79 mm

Pushbutton: 85x85x85 mm

Weight: 2 Kg

Main power supply: 230 V AC 50/60 Hz

Max consuption on main power supply: 20 mA

Buffer battery12 VD C Ni-MH 1300 mAh

Complete recharge time: 110 h


With 230 V AC power off (operation with charged buffer battery: about 14h)

With 230 V AC power on: unlimited

External module: IP 43 protection rating

Working temperature: -5 ÷ +45°C

Acoustic characteristics

Type: piezoelectric

Sound power: 90 dB at 1m

Visual warning: Red flashing led 12 VDC

In-room emergency pushbutton

In-room emergency pushbutton red flashing LED 12 Vdc

NC contact

Keyboard with IP 65 protection rating

Operating temperature: -25 ÷ +70 °C

Auxiliary relay: 8A AC1 (SPDT)
