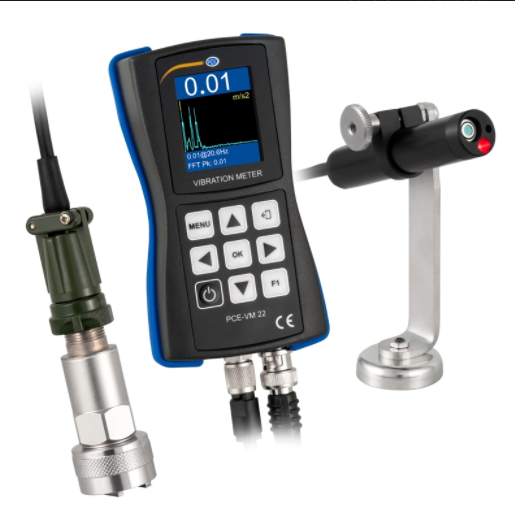

PCE PCE-VM 22 Accelerometer (0 ~ 200 m/s²)

Frequency

Measuring range: 1 ... 10,000 Hz

Resolution: 0.1 Hz

Accuracy: ±5 %

Acceleration

Measuring range: 0 ... 200 m/s²

Resolution: 0.01 m/s²

Accuracy: ±5 %

Speed

Measuring range: 0 ... 200 mm/s

Resolution: 0.01 mm/s

Accuracy: ±5 %

Displacement

Measuring range: 0 ... 2000 µm

Resolution: 0.01 µm

Accuracy: ±5 %

Infrared temperature measurement

Measuring range: -70 ... 380 °C / -94 ... 716 °F

Resolution: 0.1 °C / °F

Accuracy: ±0.5% at

  (0…+60°C), (32 ... 140 °F)

  ±1% at

  (-40 ... 0, 60 ... 120 °C), (-40 ... 32, 140 ... 248 °F)

  ±2% at

  (-70 … -40, 120 ... 180 °C),

  (-94 ... -40, 248 ... 356 °F)

  ±4% at

  (180 ... +380 °C), (356 ... 716 °F)

Emissivity: 1 fixed

Tachometer

Measuring range: 10 … 200,000 RPM

Resolution: 0.1 RPM

Accuracy: ±0.1% and ±1 RPM

Units: RPM, Hz

Further specifications for the handheld device

FFT spectrum resolution 400, 800, 1600 lines

Dynamic range: 106 dB

A/D converter resolution: 24 bit

Storage space: 4 GB

Display: 128 x 160 pixels

Interfaces: Micro USB interface

Power supply battery: 3.7 V, 1000 mAh battery

Battery life: ca. 8 hours

Power supply for power pack: 5 V DC, 1 A

Operating conditions: 0 ... 50 °C / 32 ... 122 °F, <85% RH, non-condensing

Storage conditions: -20 ... 60 °C / -4 ... 140 °F, <85% RH, non-condensing

Dimensions: 132 x 70 x 33 mm / 5.2 x 2.7 x 1.3"

Weight: 150 g / 5.3 oz

Vibration sensor specifications

Sensitivity: 100 mV/g

Cable length: ca. 1.5 m / 4.9 ft

Connection: 2 pin MIL-DTL-5015

Case material: 316L stainless steel

Dimensions: Ø25 x 53 mm / Ø0.98 x 2.08"

Weight: 86 g / 3.0 oz

Magnetic holder specifications

Diameter: 30 mm / 1.18"

Magnetic force: 20 kg / 44 lbs

Connection thread: 1/4"-28 UNF female

Smallest radius: 20 mm / 0.78"

Infrared and RPM sensor specifications

Cable length: ca. 1.2 m / 3.9 ft

Dimensions: Ø16 x 83 mm / Ø0.63 x 3.26"

Weight: 75 g / 2.6 oz

Delivery scope

1 x Accelerometer PCE-VM 22

1 x Vibration sensor with connection cable and magnetic holder

1 x Infrared sensor with speed sensor

1 x Magnetic holder

1 x USB charging adapter

1 x Micro USB cable

1 x Transport case

1 x Instruction manual
