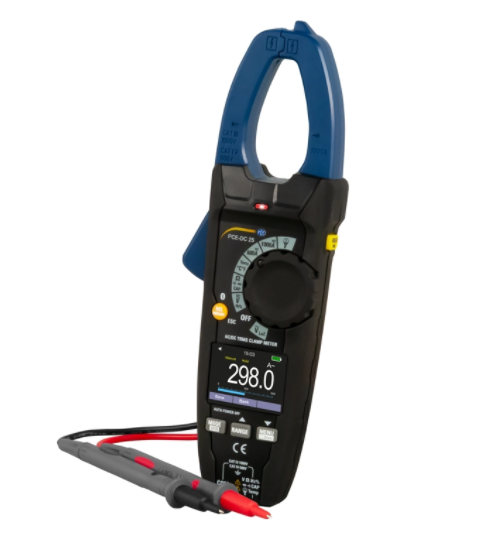

PCE DC 25 钳形表 (1000V DC/AC, 3000A AC/DC)

Measuring range  /  Resolution  /  Accuracy

DC voltage:  600.0 mV DC /  0.1 mV DC  /  ±(0.5 % + 8 digits)

  1000 V DC  /  1 V  /  ±(1.5 % + 5 digits)

Input impedance: >10 MΩ

Overvoltage protection: 1000 V AC/DC

AC voltage:  6.000 V AC  /  0.001 V AC  /  ±(1.5 % + 5 digits)

1000 V AC  /  1 V AC  /  ±(1.5 % + 5 digits)

Peak value (PEAK) accuracy: ±10 %

Peak value (PEAK) response time: 1 ms

Input impedance: >10 MΩ

Overvoltage protection: 1000 V AC/DC

Flexible clamp meter (50 ... 400 Hz)

Measuring range: 3000 A AC

Resolution: 1 A AC

Overload protection 3000 A AC/DC

Pulse range: 40 Hz ... 10 kHz

Capacity

Measuring range: 100.0 mF

Resolution: 0.1 mF

Accuracy: ±(5.0 % + 20 digits)

Maximum working height: 2000 m / 7000 ft

Power supply: 3 x 1.5 V AAA batteries

Auto power off: Switched off, 15, 30, 45, 60 minutes

Dimensions: 250 x 80 x 40 mm / 9.8 x 3.1 x 1.5"

Weight: 365 g / 12.8 oz

Delivery

1 x Clamp Meter PCE-DC 25

1 x Pair of test leads

1 x Type K thermocouple

1 x Thermocouple adapter

3 x 1.5 V AAA batteries

1 x Transport bag

1 x Instruction manual
