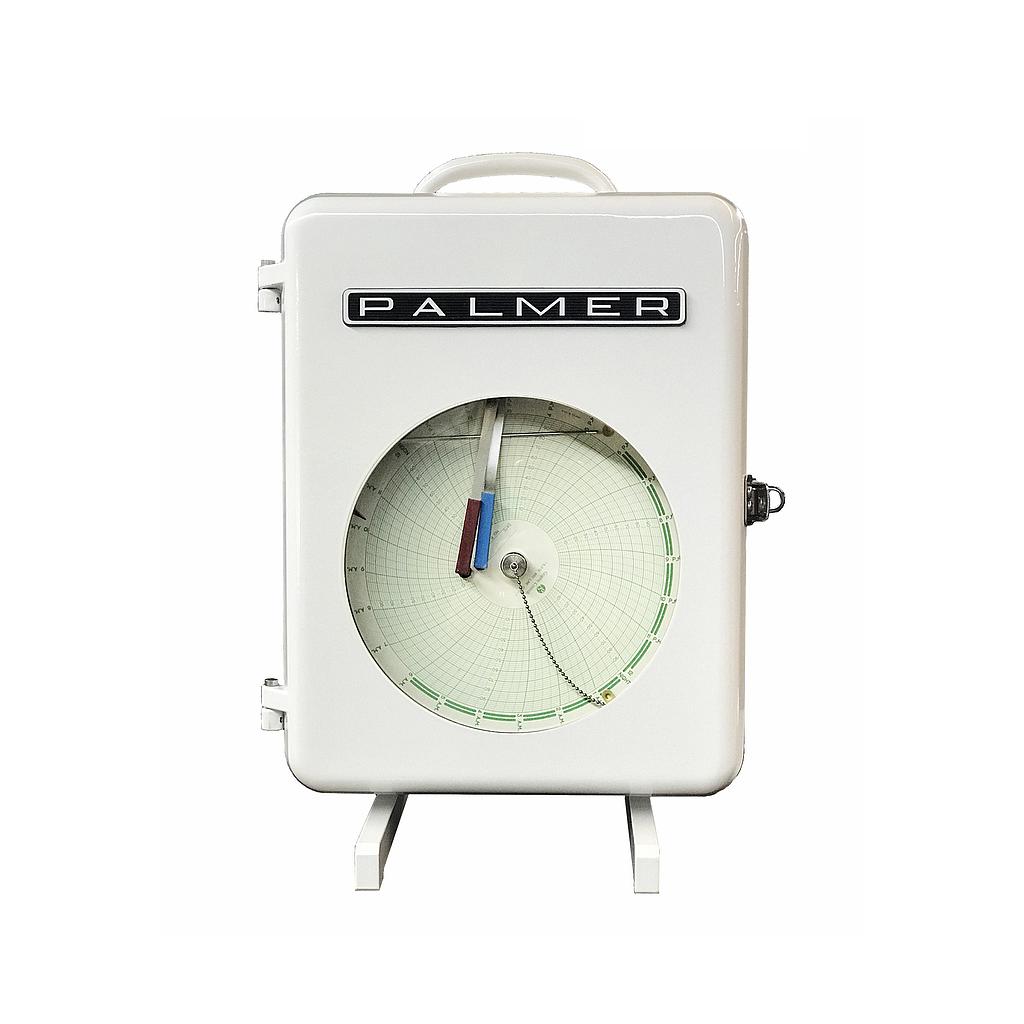

Palmer Wahl 282 温度圆图记录仪 (8 inch, wall mount)

Chart Recorder Type: Temperature System

Chart Recorder Size: 8 inch Aluminum

Chart Recorder Mounting Style: Wall Mount

Arc Line: 6-3/8 inch

Case: Heavy die-cast aluminum

Available Case Colors: White Gloss Powder Coat, standard. Black Matte Powder Coat or Gray Gloss Powder Coat available upon request

Number of Pressure System : 1 or 2

Number of Temperature Systems: 1 or 2

Pen Colors: Standard: Red, Blue, Green. Optional: Black

Accuracy: ± 1 chart graduation

Dimensions: W: 10-9/16 in. x H: 13-5/8 in. x D: 4-7/8 in. (W: 268.3 mm x H: 346.0 mm x D: 123.8 mm)
