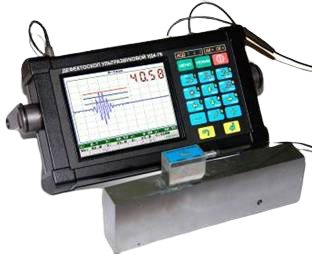

ОKОUD4-76 通用超声波探伤仪(TOFD版)

  • 制造商:OKO
    Model: UD4-76 (TOFD version)
    • 报价要求 Request a Quotation
  • 联系
    • 加入购物车
    • 立即购买
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Max. scan range: inch 236,22; mm 6000
Min. scan range: inch 0,039; mm 1
Velocity in the material: inch /µs from 0,0025 to 0,0375
m/s from 1000 to 15000
Scan delay: inch 472,44; mm 12000
Delay (in the wedge) µs: from 0 to 100
Frequency МHz: from 0,4 to 20
Initial pulse frequency: Hz from 30 to 1000
Operating modes : А-scan, B-scan
Gain: dB from 0 to 100
Signal detection:
radio signal (RF)
full wave
positive half-wave
negative half-wave
Noises cutoff: % from 0 to 100
Gates : Two independent three-level measuring gates ; Two additional special gates
Measurement modes : Peak, Front
Reconfigurable readings in А-scan: distance by the beam, amplitude in gates, defects depth coordinates, equivalent defect dimensions
Measurement resolution: inch 0,00039; mm 0,01
Defect alarm: sound, light, visual
Setups quantity: at least 100
Languages and interfaces: English, Russian, Chinese (additional languages are possible to the customer's order)
Units : SI system units
Connection to PC : USB port
Battery : storage battery Hi-MH 12V/2500 mА×h
Operation time from the battery hour: at least 8
Power supply from AC network : single-phase network 230 V, 50 Hz
Screen : color TFT
Screen size, W x H inch: inch 4,33 x 3,346; mm 110 x 85
Screen resolution, W x H: pixel 320 x 240
А-scan size, W x H x D: pixel 320 x 200
Overall dimensions : inch 9,72 x 5,79 x 3,15; mm 247 x 147 x 80
Weight: 3.5 kg
Operating temperature: ºF from +14 to +122;
ºC from minus 40 to +50
Protection from environmental impacts: IP 65 according to GOST 14254
