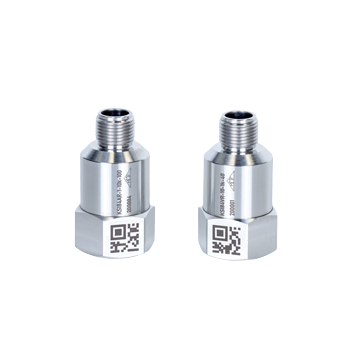

MMF KSI84Ax 振动传感器 (4-20mA)

Measurand: Acceleration

Output: 4-20 mA current loop

Overall value:

 KSI84AR-x-x-x • RMS

 KSI84AP-x-x-x • Peak

Linear frequency range:

 High pass -3dB: 1,5/3/10/30/100/1k Hz

 Low pass -3dB: 100/300/1k/5k/10k Hz

Nominal Range: 10/20/50/100/200/500 m/s² ± 2 %

IP protection grade: IP68

Operating temperature range: -40 .. 100 °C

Connector: Binder 713 (M12), axial

Weight: 60 g

Details

Option:

Connection accessories:

• 080G/W: angled (W) or straight (G) plug with 4 pins Mod. Binder 713 with screw terminals and Pg7 cable gland for cable Ø 4.. 6 mm; IP67

• 082-B713G-PIG-5; 082-B713W-PIG-5: 4 wire cable; 5 m; with angled (W) or straight (G) plug Binder 713 and pigtail ends

• M12DIS: Display module for 4-20 mA current loops, viewing area: 47 mm x 18 mm, with LED back light

Mounting accessories:

• 043: Mounting stud M8

• 229: Stainless steel adhesive pad M8

• 208: Magnetic base M8

• 230: Triaxial mounting cube M8
