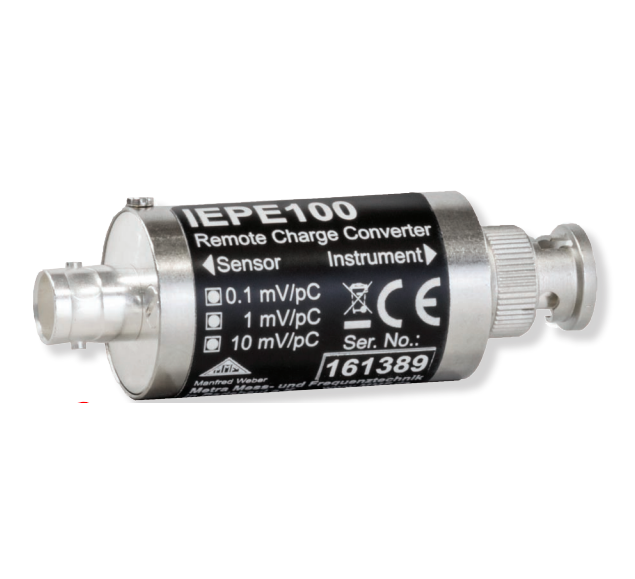

MMF IEPE100 远程电荷转换器 (0,1~10mV/pC, ± 500~50000pC)

Gain: 0,1 mV/pC; 1 mV/pC; 10 mV/pC; selectable by internal DIP switches

Accuracy: <±3%

Measuring ranges:

      0,1 mV/pC: ± 50000 pC

      1 mV/pC: ± 5000 pC

      10 mV/pC: ± 500 pC

Input: Charge input, single ended, connected to signal ground, BNC socket (female)

Overvoltage resistance at input: 50V impulse

Output: IEPE compatible, voltage, single ended, connected to signal ground, BNC plug (male)

Linear output voltage range: ±5V

Output impedance: < 100 Ω

IEPE supply: Constant current 4 .. 20 mA, compliance voltage > 20V

Frequency range:

      0,6Hz - 23kHz (-5%)

      0,3Hz - 33kHz (-10%)

      0,2Hz - 65kHz (- 3dB)

Operating temperature range: -20..80°C; -4..176°F

Case material: Brass, nickel plated

Mounting: With cable harness clamp or plug into BNC input socket of instrument

Dimensions: 1.7 in x 0.95 in (length x diameter), without sockets

Weight: 55 g (2 oz)
