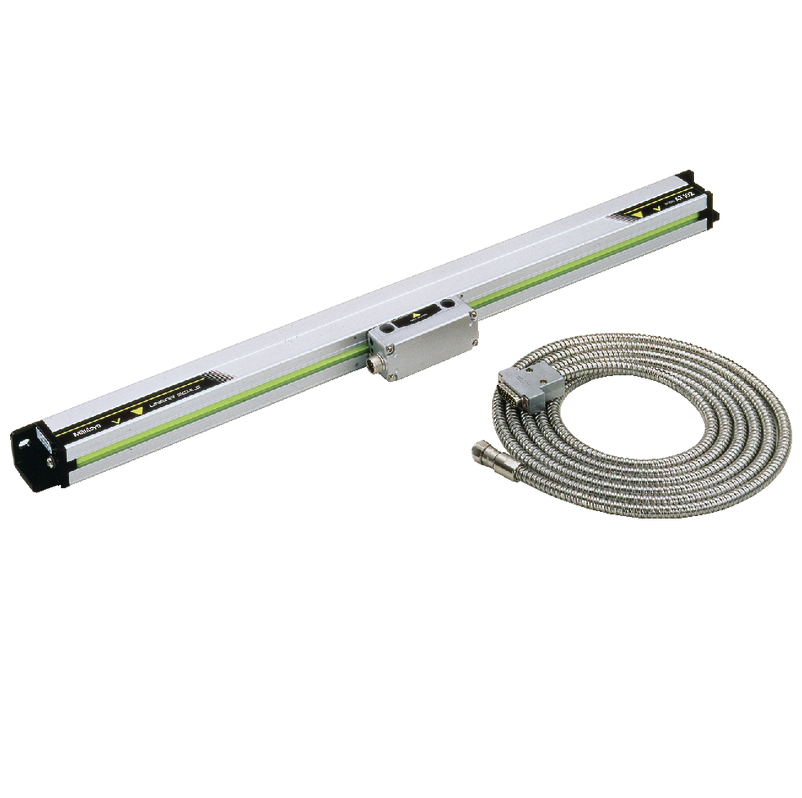

MITUTOYO AT103-250 Linear Scale (250mm, included cable)

Effective range: 250mm (10 in)

Signal cable length: 3m

Accuracy (20°C): 100 to 3000mm (5+5L/1000) µm

                             3250 to 6000mm (5+8L/1000) µm

                              L = Effective range (mm)

Output signal: Two 90° phase-shifted sinusoidal signals

Maximum response speed: 120m/min.

Signal output pitch: 20µm

Scale reference points: every 50mm

Operating temperature: 0 to 45°C

Dust/water protection level: IP53
