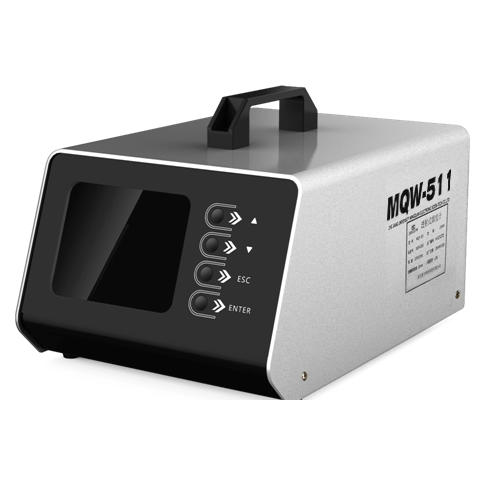

MINGTRUN MQW-511 汽车尾气分析仪 (HC;CO; CO2; NO; O2)

Item: Method/ Resolution/ Measurement range/ Absolute accuracy/ Relative accuracy

- HC: NDIR / 1×10-6 / (0～5000)×10-6; (5001～9999)×10-6 / ±12×10-6 / ±5%; ±10%

- CO: NDIR / 0.01% / (0.00～10.00)×10-2; (10.01～16.00)×10-2 / ±0.06×10-2 / ±5%; ±10%

- CO2: NDIR / 0.1% / (0.0～18.0)×10-2 / ±0.5×10-2 / ±5%

- NO: EC / 1×10-6 / (0～4000)×10-6; (4001～5000)×10-6 / ±25×10-6 / ±4%; ±8%

- O2: EC / 0.02% / (0.0～25.0)×10-2 / ±0.1×10-2 / ±5%

Response time: less than 10s (HC, CO, CO2), less than 12s (O2), less than15s (NO)

Warm-up time: less than 15 min (1min warm up for urgent measurement)

Power supply: AC 220V±22V，50Hz±1Hz

Net weight: 8kg

Dimension(W×H×D): 353×248×210 (mm)
