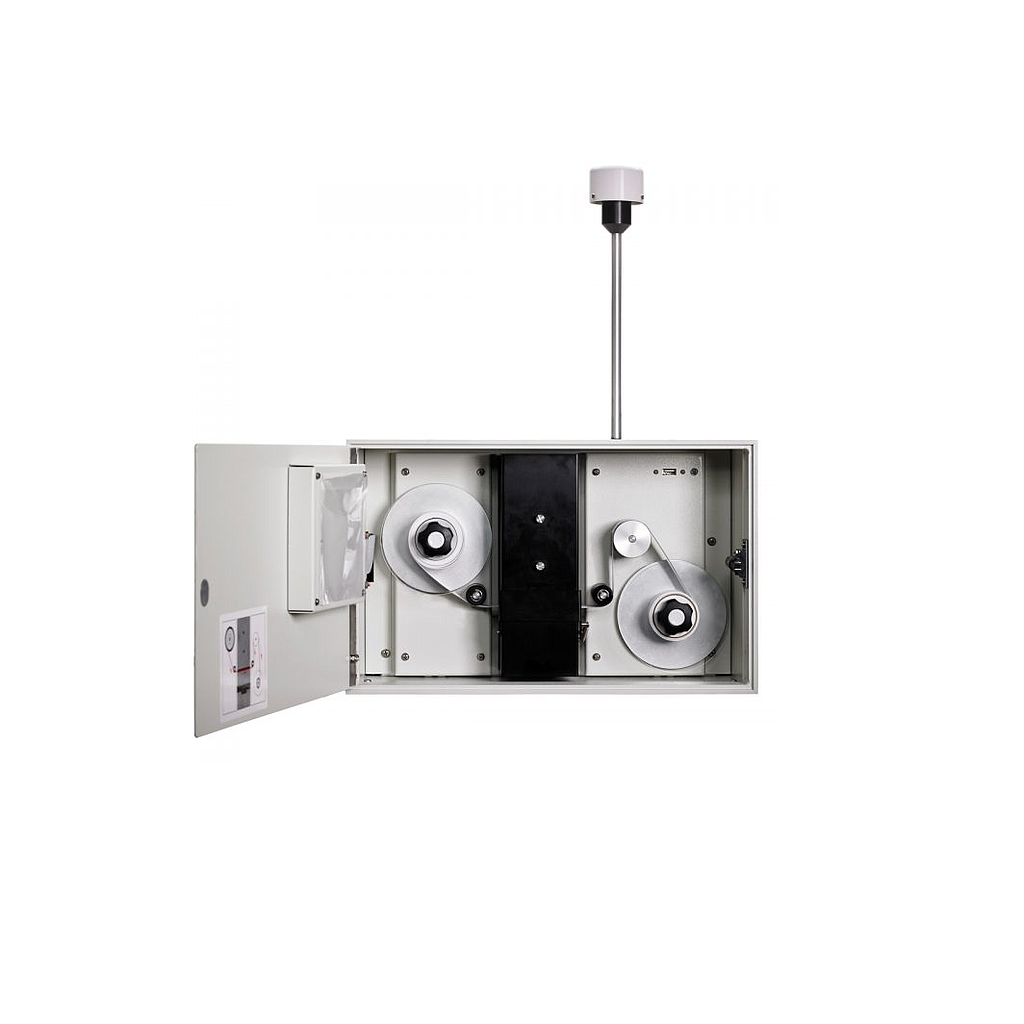

METONE BC 1054 Multi-spectrum Black Carbon Monitor (<1ng/m3; >100,000ng/m3)

Measurement Principle: Filter-Based Multiple Wavelength Optical Absorption

Illumination Wavelengths: 370, 430, 470, 525, 565, 590, 660, 700, 880 and 950nm

Measurement Range: <1ng/m3 to >100,000ng/m3 (effective)

Display Resolution: 0.1ng/m3

Limit of Detection: <8ng/m3 with (1 minute resolution)

Measurement Interval:

  • <1ng/m3 with (1 hour resolution)

  • 1-minute standard (1 second optional)

Flow Rate: 2 or 5LPM, standard user selectable, mass flow controlled and reported under actual conditions.

Pump Type: Internal AC vacuum pump

Filter Tape: Reinforced glass fiber

Power Supply: 12VDC Universal 100~240VAC 50/60Hz input, 12VDC 8.5A output supply included

Power Consumption: 50W

Operating Temperature: 0~40˚C

Ambient Temperature: -30~50˚C

Ambient Humidity Range: 0~90%RH non-condensing

Data Storage: One USB Flash Drive Port Cloud service available, stores more than 1 year of 1-minute data Single serial

Data Collection Interface: output through RS-232, USB, or through Ethernet port 1,200 to 115,200 baud.

Compatible Software: Comet™ software and USB/Ethernet driver CD included

User Interface: Menu-driven interface with 4x20 character backlit LCD display and dynamic keypad

Inlet: PM1, PM2.5, PM10 sharp cut cyclones available at either 2 or 5LPM sampling rates through flexible tubing

Unit Weight: Approximately 40lbs (18kg)

Unit Dimensions (HxWxD): 10.5”x17’’x15.8’’ (26.7x43x40cm)
