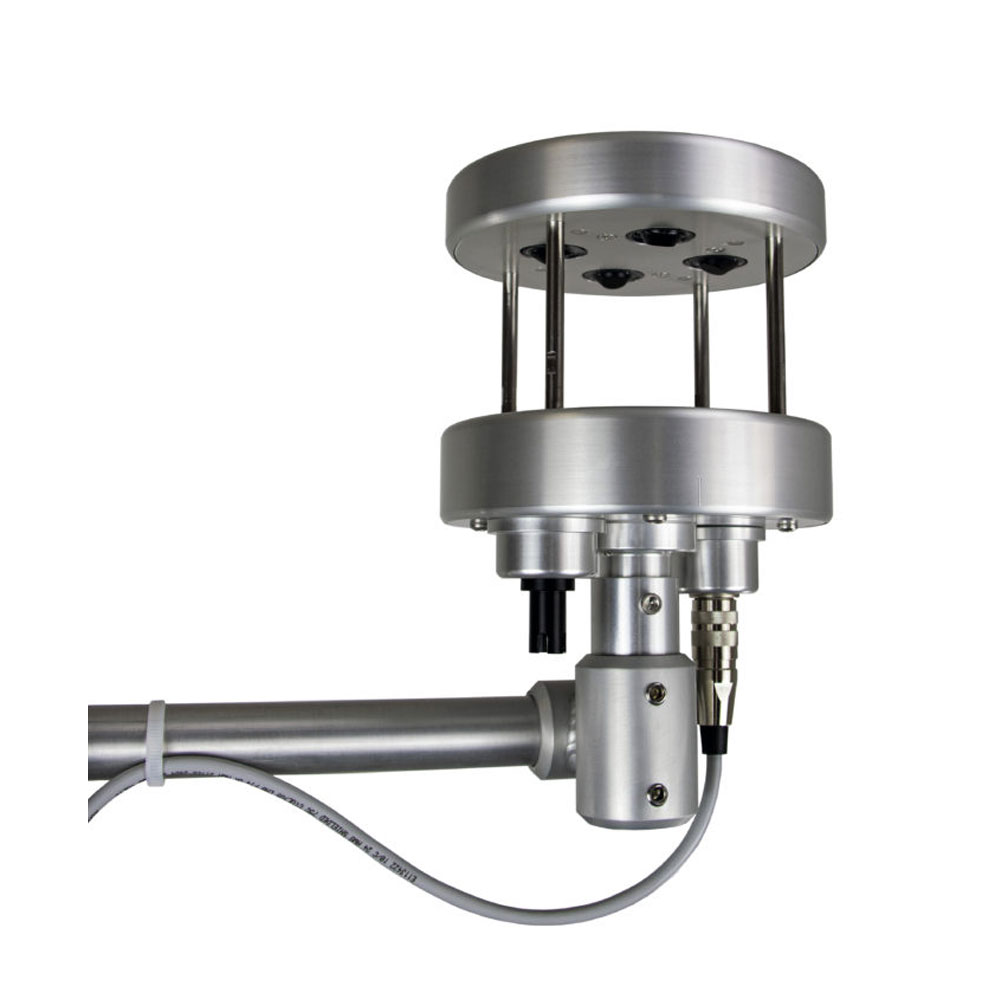

METONE 30.5 Sonic Anemometer (0~60m/s; 0~360º)

Wind Speed

Operating Range: 0~60m/s (0~134mph)

Accuracy: ±0.5m/s (1.1mph) or 5% (whichever is greater)

Resolution: 0.1m/s

Threshold: <0.2m/s Response Time: 1s


Wind Direction

Range: 0~360º

Accuracy: ±5° (Including compass error of ±2°)

Resolution: 1º

Threshold: <0.2m/s

Response Time: 1s


Electrical

Measurement format: Two orthogonal axes, North/South and East/West

Measurement rate: 1Hz

Operating frequency: 40Hz

Signal Output:

- Digital: RS-232, 50ft, RS-485, 4000ft

- Analog: 0~1VDC

Power requirement: Sensor: 8~36VDC , 40mA at 12VDC

Mean Time Between Failures (MTBF): 80000 hours


Environmental

Temperature: 40~60°C (-40~140°F)

Humidity: 0~100%


Physical

Weight: 1.16kg (2.55lbs)

Size: 228 mm (9.0 in) high by 152 mm (6.0 in) diameter

Mounting: ¾ in IPS (1.05” or 26 mm OD) vertical pipe stub
